Xem Studiomeasured geometryGoPro-style three-finger mount
What are the dimensions of a GoPro three-finger mount? · Standard part · basis: de facto standard; community-measured values
- size
- pending scan
Notes
- Each finger ~3 mm thick with ~3.3 mm gaps; three-finger side total ~15.4 mm; two-finger side mates between; Ø5.2 mm through-hole for an M5 thumbscrew; finger radius ~7.5 mm.
- Values are measured, not published by GoPro; print a test clip.
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Printables (community) | GoPro mount models | STL, 3MF | varies per upload verify |
Xem scan
Not needed Published standard; the sheet is the geometry.
Plain text: sheet.txt · JSON: /api/geometry?object=gopro-mount

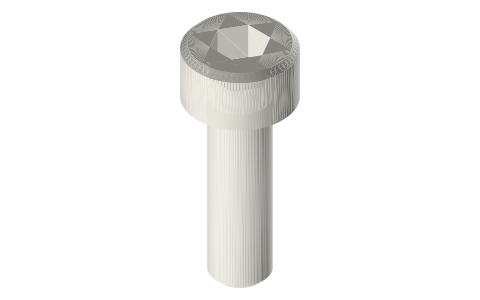

Fits with
Questions
What are GoPro mount finger dimensions?
Fingers about 3 mm thick with 3.3 mm gaps; three-finger side about 15.4 mm total; Ø5.2 mm through-hole for an M5 thumbscrew.
What screw does a GoPro mount use?
M5 thumbscrew, about 20 mm long for a two-into-three finger joint.
