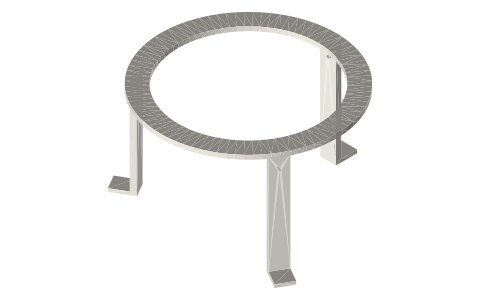

Burner stand for a 10 in tri-clamp pot
How do I stand a 10 inch tri-clamp engine over a burner? · Hardware · basis: Exact geometry
Long Earth Society build part. Parts of the HTD engines. The engines
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- sizes
- 1 in table
Notes

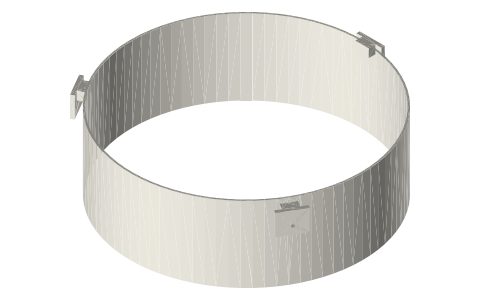

- The ring's top (201.53 above the bench) carries the 10 in clamp's underside; the cup hangs through it, its floor 150 (main) or 140.4 (pot) above the bench, which leaves the burner room under it. Three legs, each with an M5 hole for the optional shroud's tab.
Sizes
| ring_mm | legs | ring_top_mm |
|---|---|---|
| Ø264 / Ø330 × 8 | 3 × 30 × 10 | 201.53 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| ring top | Ø264–Ø330 flat | underside of the 10 in clamp | designed | all |
| leg holes | Ø5.5 radial at z 170 | shcs-m5x20 (shroud tabs) | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| burner-stand-10in | burner stand: ring Ø264/Ø330 × 8 under the 10 in clamp, three legs r 150..160 × 30 at 90/210/330°, feet | STEP · STL |
Plain text: sheet.txt · JSON: /api/geometry?object=htd-burner-stand-10in
How it fits
In these build lists
HTD engine, 10 in tri-clamp…A big flat gamma Stirling for a propane burner: a Ø240 displacer in a 10 in weld…You might also need
Questions
What holds the engine?
The clamp at the cup's top joint rests on the ring.
