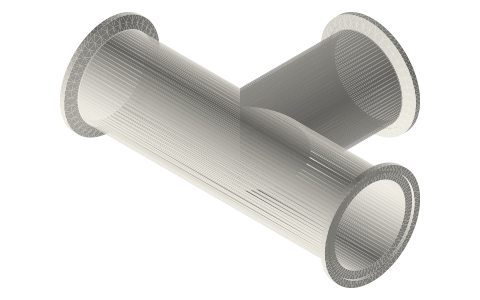

Sanitary clamp tees, short-outlet tees and crosses, ½ to 4 in (tri-clamp style, BPE)
What are the dimensions of a 2 inch tri-clamp tee? · Standard part · basis: ASME BPE / 3-A clamp-fitting dimensions published identically by two manufacturers; ISO 2852 face profile; drawn by Xem Studio from those numbers
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- sizes
- 8 in table
Notes
- Equal tee (7MP): run face to face B, branch centre to face A. Short-outlet tee (7MPS): same run, branch only as long as the flange needs, for an instrument or a sample valve close to the line. Cross (9MP): run and two opposite branches.
- Faces: ISO 2852 profile (2.85 mm rim, 1.6 mm gasket recess, 20° back cone) on the BPE flange diameters ½–¾ in 25.0, 1–1½ in 50.5, 2 in 64.0, 2½ in 77.5, 3 in 91.0, 4 in 119.0 mm; tube OD 12.7 / 19.05 / 25.4 / 38.1 / 50.8 / 63.5 / 76.2 / 101.6 mm, wall 1.65 mm (4 in: 2.11). The gasket-groove diameter on ½, ¾ and 4 in is derived (flange − 7.0 / 7.5 mm, the land width of every size ISO 2852 lists); the rest is from the standard.
Sizes
| size_in | tee_run_mm | tee_branch_mm | short_branch_mm | cross_run_mm | cross_branch_mm |
|---|---|---|---|---|---|
| ½ | 63.5 | 31.8 | — | 114.3 | 57.1 |
| ¾ | 120.6 | 60.3 | — | 120.6 | 60.3 |
| 1 | 120.6 | 60.3 | 28.6 | 120.6 | 60.3 |
| 1½ | 139.7 | 69.8 | 34.9 | 139.7 | 69.8 |
| 2 | 177.8 | 88.9 | 41.3 | 177.8 | 88.9 |
| 2½ | 177.8 | 88.9 | 47.6 | 177.8 | 88.9 |
| 3 | 190.5 | 95.2 | 54.0 | 190.5 | 95.2 |
| 4 | 228.6 | 114.3 | 69.8 | 228.6 | 114.3 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| clamp faces | ISO 2852 / BPE flange | clamp + Type B gasket to any fitting of the same size | clamp | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ASME | BPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall) | standard | ASME; dimensions are facts verify |
| ISO (via iTeh sample) | ISO 2852 clamp liners: face profile and flange / groove diameters | standard excerpt; dimensions are facts | |
| Dixon Sanitary | Clamp elbows, ferrules: dimension sheet | publisher's catalogue; dimensions cited, nothing copied | |
| Steel & O'Brien | Sanitary products catalog 2024 (clamp fittings dimension tables) | publisher's catalogue; dimensions cited, nothing copied |
Free files
★ Free files 22 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| tee-0.5in | ½ in equal tee (7MP): run 2.5 in face to face, branch 1.25 in centre to face | STEP · STL |
| cross-0.5in | ½ in cross (9MP): run 4.5 in face to face, branches 2.25 in centre to face | STEP · STL |
| tee-0.75in | ¾ in equal tee (7MP): run 4.75 in face to face, branch 2.375 in centre to face | STEP · STL |
| cross-0.75in | ¾ in cross (9MP): run 4.75 in face to face, branches 2.375 in centre to face | STEP · STL |
| tee-1in | 1 in equal tee (7MP): run 4.75 in face to face, branch 2.375 in centre to face | STEP · STL |
| tee-short-1in | 1 in short-outlet tee (7MPS): run 4.75 in, branch 1.125 in centre to face | STEP · STL |
| cross-1in | 1 in cross (9MP): run 4.75 in face to face, branches 2.375 in centre to face | STEP · STL |
| tee-1.5in | 1½ in equal tee (7MP): run 5.5 in face to face, branch 2.75 in centre to face | STEP · STL |
| tee-short-1.5in | 1½ in short-outlet tee (7MPS): run 5.5 in, branch 1.375 in centre to face | STEP · STL |
| cross-1.5in | 1½ in cross (9MP): run 5.5 in face to face, branches 2.75 in centre to face | STEP · STL |
| tee-2in | 2 in equal tee (7MP): run 7.0 in face to face, branch 3.5 in centre to face | STEP · STL |
| tee-short-2in | 2 in short-outlet tee (7MPS): run 7.0 in, branch 1.625 in centre to face | STEP · STL |
| cross-2in | 2 in cross (9MP): run 7.0 in face to face, branches 3.5 in centre to face | STEP · STL |
| tee-2.5in | 2½ in equal tee (7MP): run 7.0 in face to face, branch 3.5 in centre to face | STEP · STL |
| tee-short-2.5in | 2½ in short-outlet tee (7MPS): run 7.0 in, branch 1.875 in centre to face | STEP · STL |
| cross-2.5in | 2½ in cross (9MP): run 7.0 in face to face, branches 3.5 in centre to face | STEP · STL |
| tee-3in | 3 in equal tee (7MP): run 7.5 in face to face, branch 3.75 in centre to face | STEP · STL |
| tee-short-3in | 3 in short-outlet tee (7MPS): run 7.5 in, branch 2.125 in centre to face | STEP · STL |
| cross-3in | 3 in cross (9MP): run 7.5 in face to face, branches 3.75 in centre to face | STEP · STL |
| tee-4in | 4 in equal tee (7MP): run 9.0 in face to face, branch 4.5 in centre to face | STEP · STL |
| tee-short-4in | 4 in short-outlet tee (7MPS): run 9.0 in, branch 2.75 in centre to face | STEP · STL |
| cross-4in | 4 in cross (9MP): run 9.0 in face to face, branches 4.5 in centre to face | STEP · STL |
Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-tees-crosses
How it fits
Connects to
Tri-clamp clamps, hot-joint gaskets and heat shieldsa clamp and gasket at each face
Sanitary clamp elbows, 90° and 45°, ½ to 4 inturn a branch
Sanitary clamp caps, ferrules, spools and…caps for unused ports, spools betweenAlternatives
Sanitary clamp header manifoldsseveral outlets on one headerYou might also need
Questions
How long is a 2 in sanitary clamp tee?
7.0 in (177.8 mm) face to face on the run, 3.5 in (88.9 mm) from the run centreline to the branch face.
What is a short-outlet tee for?
A port right at the line for a gauge, thermowell or sample valve: the branch is just long enough for the flange (2 in: 1.625 in centre to face).
