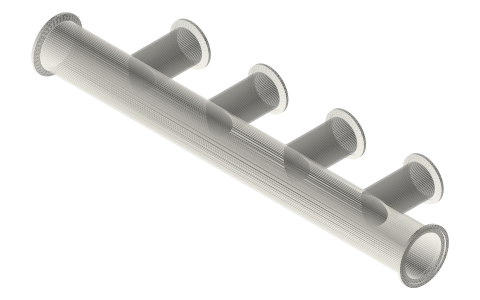

Sanitary clamp header manifolds: 1½, 2 and 3 in headers with 3 to 5 outlets (tri-clamp style)
How do I lay out a tri-clamp manifold? · Standard part · basis: ASME BPE / 3-A clamp-fitting dimensions published identically by two manufacturers; ISO 2852 face profile; drawn by Xem Studio from those numbers
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- sizes
- 7 in table
Notes
- Header manifolds: a straight header of one size with outlets of the next size down on one side, all clamp faces. This is a Xem Studio layout (manifolds are not a standard part): ends and outlets use the header size's tee centre to face, outlets sit on an even pitch, so they line up with standard tees, valves and spools of the same sizes.
- Close unused outlets with an end cap; join headers end to end with a clamp.
- Faces: ISO 2852 profile (2.85 mm rim, 1.6 mm gasket recess, 20° back cone) on the BPE flange diameters ½–¾ in 25.0, 1–1½ in 50.5, 2 in 64.0, 2½ in 77.5, 3 in 91.0, 4 in 119.0 mm; tube OD 12.7 / 19.05 / 25.4 / 38.1 / 50.8 / 63.5 / 76.2 / 101.6 mm, wall 1.65 mm (4 in: 2.11). The gasket-groove diameter on ½, ¾ and 4 in is derived (flange − 7.0 / 7.5 mm, the land width of every size ISO 2852 lists); the rest is from the standard.
Sizes
| layout | header_face_to_face_mm | pitch_mm | outlet_c_to_f_mm |
|---|---|---|---|
| 1½ × 3 × 1 | 292.1 | 76.2 | 69.8 |
| 1½ × 4 × 1 | 368.3 | 76.2 | 69.8 |
| 2 × 3 × 1½ | 381.0 | 101.6 | 88.9 |
| 2 × 4 × 1½ | 482.6 | 101.6 | 88.9 |
| 2 × 5 × 1½ | 584.2 | 101.6 | 88.9 |
| 3 × 3 × 2 | 444.5 | 127.0 | 95.2 |
| 3 × 4 × 2 | 571.5 | 127.0 | 95.2 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| clamp faces | ISO 2852 / BPE flange | clamp + Type B gasket, header and outlet sizes | clamp | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ASME | BPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall) | standard | ASME; dimensions are facts verify |
| ISO (via iTeh sample) | ISO 2852 clamp liners: face profile and flange / groove diameters | standard excerpt; dimensions are facts | |
| Dixon Sanitary | Clamp elbows, ferrules: dimension sheet | publisher's catalogue; dimensions cited, nothing copied | |
| Steel & O'Brien | Sanitary products catalog 2024 (clamp fittings dimension tables) | publisher's catalogue; dimensions cited, nothing copied |
Free files
★ Free files 7 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| manifold-1.5in-3x1in | 1½ in header, 3 × 1 in outlets at 3.0 in pitch: 11.50 in face to face, outlets 2.750 in centre to face | STEP · STL |
| manifold-1.5in-4x1in | 1½ in header, 4 × 1 in outlets at 3.0 in pitch: 14.50 in face to face, outlets 2.750 in centre to face | STEP · STL |
| manifold-2in-3x1.5in | 2 in header, 3 × 1½ in outlets at 4.0 in pitch: 15.00 in face to face, outlets 3.500 in centre to face | STEP · STL |
| manifold-2in-4x1.5in | 2 in header, 4 × 1½ in outlets at 4.0 in pitch: 19.00 in face to face, outlets 3.500 in centre to face | STEP · STL |
| manifold-2in-5x1.5in | 2 in header, 5 × 1½ in outlets at 4.0 in pitch: 23.00 in face to face, outlets 3.500 in centre to face | STEP · STL |
| manifold-3in-3x2in | 3 in header, 3 × 2 in outlets at 5.0 in pitch: 17.50 in face to face, outlets 3.750 in centre to face | STEP · STL |
| manifold-3in-4x2in | 3 in header, 4 × 2 in outlets at 5.0 in pitch: 22.50 in face to face, outlets 3.750 in centre to face | STEP · STL |
Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-manifolds
How it fits
Connects to
Tri-clamp clamps, hot-joint gaskets and heat shieldsa clamp per face

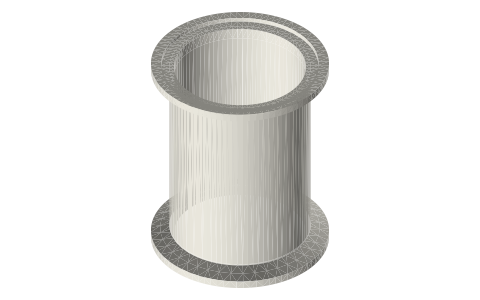

Sanitary clamp caps, ferrules, spools and…caps for unused outletsAlternatives
Sanitary clamp tees, short-outlet tees and…single branchesYou might also need
Questions
How long is a 2 in × 4-outlet sanitary manifold?
With 1½ in outlets on a 4 in pitch: 19.0 in (482.6 mm) face to face, outlets 3.5 in from the header centreline to the face.
