Frame for the charged tri-clamp beta
What frame holds a standing tri-clamp beta over a torch? · Hardware · basis: Design values; torch-stand and shroud hole pattern as the sealed generator's frame
Long Earth Society build part. The frame of my charged beta. The engines
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- Base and wall: the column hangs from two spool hangers on the power cylinder; the burner shroud and torch stand use the sealed generator's hole pattern.
Sizes
| feature | value |
|---|---|
| base | 260 × 170 × 8 |
| wall | x ±62, to z 316 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| hanger holes | 4 × Ø5.5 | M5 clearance | designed | all |
| tapped holes | 5 × M4 Ø3.3 | torch stand, burner shroud feet | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

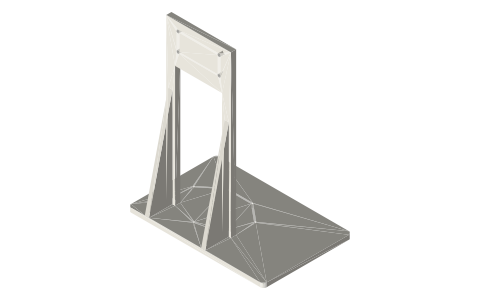

| charged-beta-frame-2in | charged beta frame: base 260 × 170 × 8, wall x ±62 to z 316 with two hanger bars' holes, gussets, torch-stand and shroud holes (M4 tapped) | STEP · STL |
Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-charged-beta-frame
How it fits
In these build lists
Tri-clamp charged beta, 2 inA standing beta that holds a charge: the same hot spool, liner, regenerator and …You might also need
Questions
Where does it hang?
Two hangers on the cold power cylinder; nothing touches the hot spool.
