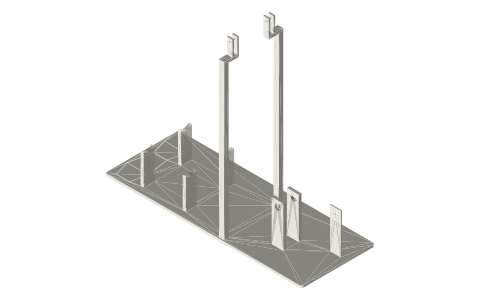

Frame for the tri-clamp twin walking-beam gamma
What frame holds two tri-clamp beam engines on one crank? · Hardware · basis: Design values
Long Earth Society build part. The frame of my twin beam engine. The engines
Exact dimensions. True size, with no printing tolerance added.
- sizes
- 2 in table
Notes
- One base for two walking-beam units side by side, 139 mm apart: cradles, two beam posts (mirror images), the shared crank's two uprights and the generator bracket.
Sizes
| feature | value |
|---|---|
| base | 730 × 274 × 8 |
| unit spacing | 139.0 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| twin-walking-beam-gamma-frame-2in | twin walking-beam gamma frame: base 730 × 274 × 8, four cradles, two beam posts, two crank uprights with 608 pockets, generator bracket, holes for two torch stands and two shrouds | STEP · STL |
Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-twin-walking-beam-gamma-frame
How it fits
In these build lists
Tri-clamp twin walking-beam gamma generator, 2…Two walking-beam tee units side by side on one crank, a quarter turn apart: each…You might also need
Questions
Why mirror the second unit?
So both units' rods and links run on the crank's inner side and one shaft carries both webs, the flywheel and the pulley between the two bearings.
