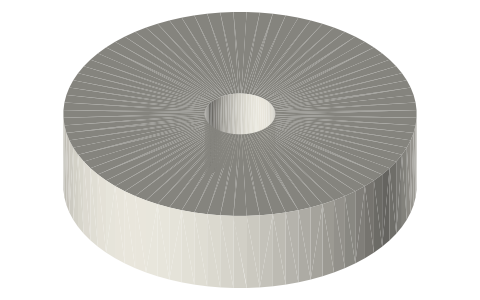

Anti-friction wheel Ø40 × 10, Ø8 bore
What is an anti-friction wheel? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: anti friction wheel, friction roller, rueda antifricción, Friktionsrolle
Exact dimensions. True size, with no printing tolerance added.
- length
- 40.0 mm
- width
- 40.0 mm
- height
- 10.0 mm
Notes

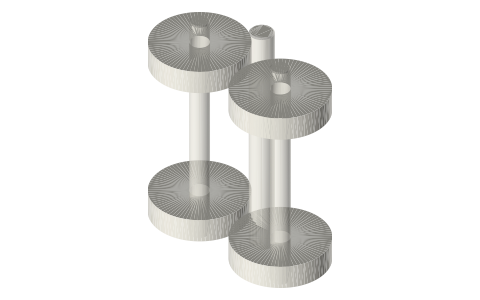

- Plain Ø40 × 10 wheel on a Ø8 axle: two of them, 44 mm apart, carry a shaft on their rims, so the shaft rolls on the wheels instead of sliding in a bearing.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Anti-friction wheel Ø40 × 10, Ø8 bore size chart
| dimension | value |
|---|---|
| wheel | Ø40 × 10 |
| bore | Ø8 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 250: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=anti-friction-wheel-40x10-bore8
Fits with
Questions
What is an anti-friction wheel?
Plain Ø40 × 10 wheel on a Ø8 axle: two of them, 44 mm apart, carry a shaft on their rims, so the shaft rolls on the wheels instead of sliding in a bearing.
