APC 10x7E electric propeller

What are the dimensions of the APC 10x7E electric propeller? · Modern device · basis: Secondary source: Retailer copy of APC Propellers data (copy of the maker's figures; the maker publishes none directly)

Also called: apc 10x7e hub size, apc 10x7 prop dimensions, apc 10x7e hub diameter, apc 10x7e shaft, 10x7 prop hub thickness, apc 10x7 thin electric, apc 10x7e weight, hélice apc 10x7, apc 10x7 propeller abmessungen

Exact dimensions. True size, with no printing tolerance added.

length
254.0 mm
width
254.0 mm
height
10.16 mm

Notes

  • Hub, bore and weight for the APC 10x7E as listed by a retailer from APC's product data (secondary).
  • The file models the hub and the swept diameter for clearance checks, not the blade airfoil.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

APC 10x7E electric propeller size chart

dimensionvalue
Diameter10 in (254.0 mm)
Pitch7 in (177.8 mm)
Hub diameter20.32 mm
Hub thickness10.16 mm
Shaft bore1/4 in (6.35 mm), adapter rings included
Weight20.13 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Retailer copy of APC Propellers dataAPC B10x7E 2-Blade Propeller (GetFPV)webPublisher's page; dimensions are facts

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

apc-10x7e-propeller-hubHub Ø20.32 × 10.16 mm, Ø6.35 mm bore (published)STEP · STL
apc-10x7e-propeller-swept-discSwept disc Ø254 mm (prop diameter), 1 mm reference — blades not modelledSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=apc-10x7e-propeller

APC 10x7E electric propeller, isometric render of a generated part

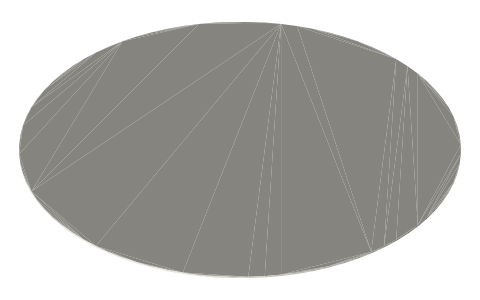

Render of apc-10x7e-propeller-swept-disc from the free STEP; not to scale.

Fits with

RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale), isometric render of a generated part
RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale)12 sizes★ 5 files
APC 8x4E electric propeller, isometric render of a generated part
APC 8x4E electric propeller203.2×203.2×8.89 mm★ 2 files
APC 8x6E electric propeller, isometric render of a generated part
APC 8x6E electric propeller203.2×203.2×9.91 mm★ 2 files
APC 9x4.5E electric propeller, isometric render of a generated part
APC 9x4.5E electric propeller228.6×228.6×9.65 mm★ 2 files
APC 9x6E electric propeller, isometric render of a generated part
APC 9x6E electric propeller228.6×228.6×9.91 mm★ 2 files

Questions

What is the hub size of an APC 10x7E?

Hub Ø20.32 mm × 10.16 mm thick, 6.35 mm (1/4 in) bore.
