Apple Mac Pro (2023)
What are the dimensions of the Mac Pro? · Modern device · basis: Apple specifications
Also called: mac pro dimensions, mac pro rack size, mac pro medidas, mac pro Maße, Apple Mac Pro medidas, Apple Mac Pro dimensões, Apple Mac Pro Maße, Apple Mac Pro dimensions
Exact dimensions. True size, with no printing tolerance added.
- length
- 218 mm
- width
- 450 mm
- height
- 529 mm
Notes
- Apple Mac Pro (2023), width × depth × height: tower 218 × 450 × 529 mm, 16.86 kg (529 mm high on feet, 557 mm on wheels); rack 482 × 539.5 × 220.2 mm, 17.21 kg (5U; depth from the front handles; fits racks 609.6–1066.8 mm deep).
- Envelopes only; handles, feet and rails are not modelled.
Apple Mac Pro size chart
| dimension | value |
|---|---|
| tower | 218 × 450 × 529 mm (8.58 × 17.72 × 20.83 in), 16.86 kg — 529 mm high on feet, 557 mm on wheels |
| rack | 482 × 539.5 × 220.2 mm (18.98 × 21.24 × 8.67 in), 17.21 kg — 5U; depth from the front handles; fits racks 609.6–1066.8 mm deep |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Apple | Mac Pro technical specifications | web | Publisher's page; dimensions are facts |
Free files
★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

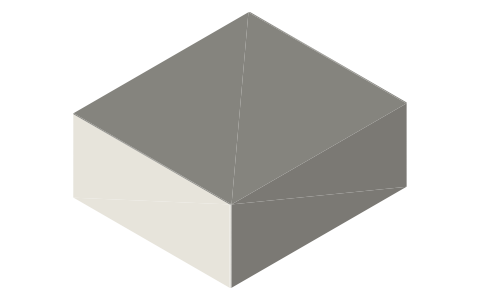

| apple-mac-pro-2023-tower-envelope | Tower envelope | STEP · STL |
| apple-mac-pro-2023-rack-envelope | Rack envelope | STEP · STL |
Let your AI pull this. Add
Set it up →https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=apple-mac-pro-2023
Fits with
Questions
How big is the Mac Pro?
Tower 218 × 450 × 529 mm; rack 482 mm wide, 5U.
