Apple MacBook Air 13-inch (M4 / M5)

Name: Apple MacBook Air 13-inch (M4 / M5) dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Apple MacBook Air 13-inch (M4 / M5)? · Modern device · basis: Apple specifications page

Also called: apple macbook air 13-inch (m4 / m5) dimensions, apple macbook air 13-inch (m4 / m5) size, macbook air 13-inch (m4 / m5) dimensions, Apple MacBook Air 13-inch medidas, Apple MacBook Air 13-inch dimensões, Apple MacBook Air 13-inch Maße, Apple MacBook Air 13-inch dimensions

Exact dimensions. True size, with no printing tolerance added.

length: 304.1 mm
width: 215.0 mm
height: 11.3 mm

Notes

Apple MacBook Air 13-inch (M4 / M5): 304.1 × 215 × 11.3 mm (11.97 × 8.46 × 0.44 in), 1230 g.
Axes: Apple publishes width 30.41, depth 21.5, height 1.13 cm; M4 (support.apple.com/122209) has the same case at 1.24 kg.

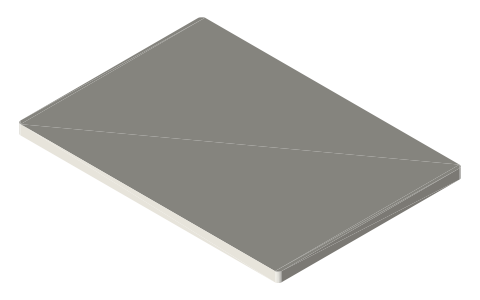

The file is a rounded envelope box of the published size (lens, buttons and ports not modelled; detail scan planned).

Apple MacBook Air 13-inch size chart

dimension	value
size	304.1 × 215 × 11.3 mm (11.97 × 8.46 × 0.44 in)
weight	1230 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Apple

MacBook Air 13-inch (M4 / M5) specifications

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

apple-macbook-air-13-inch-m4-m5-envelope

Envelope 304.1 × 215 × 11.3 mm

STEP · STL
