Apple Studio Display (2026)

Name: Apple Studio Display (2026) dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Apple Studio Display? · Modern device · basis: Apple specifications

Also called: apple studio display dimensions, studio display size, studio display vesa, studio display medidas, studio display Maße, Apple Studio Display medidas, Apple Studio Display dimensões, Apple Studio Display Maße, Apple Studio Display dimensions

Exact dimensions. True size, with no printing tolerance added.

length: 623 mm
width: 168 mm
height: 478 mm

Notes

Apple Studio Display (2026) with each mounting option, width × depth × height: tilt-adjustable stand 623 × 168 × 478 mm, 6.3 kg; tilt- and height-adjustable stand 623 × 207 × 479 mm, 7.6 kg; VESA mount adapter 623 × 31 × 362 mm, 5.4 kg.
Height-adjustable stand: 479 mm at its lowest, 583 mm at its highest. VESA version: 100 × 100 mm pattern.
Envelopes only; the stand foot and hinge are not published (scan planned).

Apple Studio Display size chart

dimension	value
tilt-adjustable stand	623 × 168 × 478 mm (24.53 × 6.61 × 18.82 in), 6.3 kg
tilt- and height-adjustable stand	623 × 207 × 479 mm (24.53 × 8.15 × 18.86 in), 7.6 kg — height 479 mm lowest, 583 mm highest
VESA mount adapter	623 × 31 × 362 mm (24.53 × 1.22 × 14.25 in), 5.4 kg — VESA 100 × 100 mm, landscape or portrait

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Apple

Studio Display technical specifications

web

Publisher's page; dimensions are facts

Free files

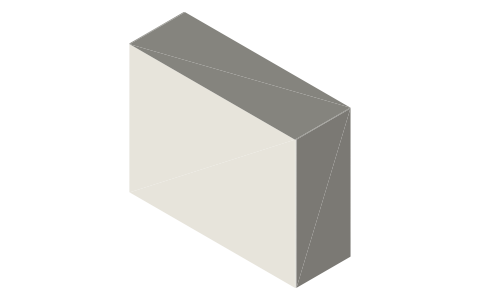

★ Free files 3 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

apple-studio-display-2026-tilt-adjustable-stand-envelope	Envelope with tilt-adjustable stand	STEP · STL
apple-studio-display-2026-tilt-and-height-adjustable-stand-envelope	Envelope with tilt- and height-adjustable stand	STEP · STL
apple-studio-display-2026-vesa-mount-adapter-envelope	Envelope with VESA mount adapter	STEP · STL
