ASUS ROG Ally X

Name: ASUS ROG Ally X dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the ASUS ROG Ally X? · Modern device · basis: ASUS specifications

Also called: asus rog ally x dimensions, rog ally x size, rog ally x medidas, rog ally x Maße

Exact dimensions. True size, with no printing tolerance added.

length: 280 mm
width: 111 mm
height: 36.9 mm

Notes

ASUS ROG Ally X: 280 × 111 × 36.9 mm (width × height × maximum thickness), 678 g. ASUS publishes 28.0 × 11.1 × 2.47–3.69 cm (thickness 24.7 to 36.9 mm).
Grips, sticks and triggers make the real shape: the file is the bounding envelope; detail scan planned.

ASUS ROG Ally X size chart

dimension	value
width × height × thickness	280 × 111 × 36.9 mm
weight	678 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ASUS

ROG Ally X specifications

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

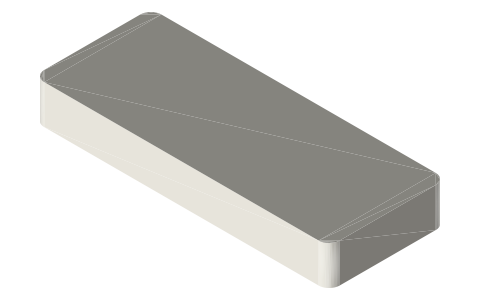

asus-rog-ally-x-envelope

Envelope 280 × 111 × 36.9 mm

STEP · STL
