Axial AXIC0221 ball bearing, 5 × 11 × 4 mm

Name: Axial AXIC0221 ball bearing, 5 × 11 × 4 mm dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What size is Axial bearing AXIC0221? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXIC0221, axial AXIC0221, Axial part AXIC0221, AXIC0221 axa1221 bearing 5x11x4mm, Axial AXIC0221 size, Axial AXIC0221 dimensions, Axial AXIC0221 replacement, repuesto Axial AXIC0221, Axial AXIC0221 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length: 11.01 mm
width: 11.01 mm
height: 4.01 mm

Notes

Axial part AXIC0221: AXA1221 Bearing 5x11x4mm. Size exactly as printed in Axial's parts list; the file is built from that size only.
Bearing envelope 5 × 11 × 4 mm (bore × OD × width).
True size, no printing tolerance added.

Axial AXIC0221 ball bearing, 5 × 11 × 4 mm size chart

dimension	value
part number	Axial AXIC0221
name (as printed)	AXA1221 Bearing 5x11x4mm
size (as printed)	5x11x4mm
bore	5 mm
outside diameter	11 mm
width	4 mm
seals / balls	as printed in the name; not modelled
used in	axial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)

SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 59

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axic0221-axa1221-bearing-5x11x4mm-envelope

Bearing envelope 5 × 11 × 4 mm (bore × OD × width)

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axic0221-axa1221-bearing-5x11x4mm

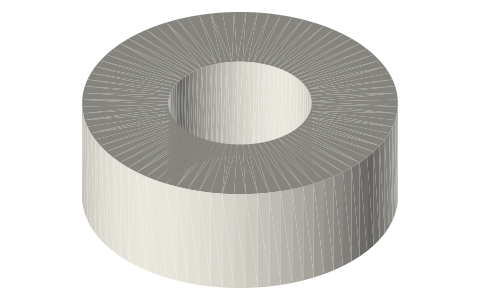

Axial AXIC0221 ball bearing, 5 × 11 × 4 mm, isometric render of a generated part — Render of axial-axic0221-axa1221-bearing-5x11x4mm-envelope from the free STEP; not to scale.

Fits with

Free

Axial SCX10 III Jeep CJ-7 parts list, isometric render of a generated part

Axial SCX10 III Jeep CJ-7 parts list106 sizes★ 16 files Free

Ball bearings, 683 to 6210 and flanged F6xx (ISO 15), isometric render of a generated part

Ball bearings, 683 to 6210 and flanged F6xx (ISO 15)44 sizes★ 44 files

Questions

What size is Axial bearing AXIC0221?

5 × 11 × 4 mm
