Axial AXIC0230 ball bearing, 10 × 15 × 4 mm

Name: Axial AXIC0230 ball bearing, 10 × 15 × 4 mm dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What size is Axial bearing AXIC0230? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXIC0230, axial AXIC0230, Axial part AXIC0230, AXIC0230 axa1230 bearing 10x15x4mm, Axial AXIC0230 size, Axial AXIC0230 dimensions, Axial AXIC0230 replacement, repuesto Axial AXIC0230, Axial AXIC0230 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length: 15.01 mm
width: 15.01 mm
height: 4.01 mm

Notes

Axial part AXIC0230: AXA1230 Bearing 10x15x4mm. Size exactly as printed in Axial's parts list; the file is built from that size only.
Bearing envelope 10 × 15 × 4 mm (bore × OD × width).
True size, no printing tolerance added.

Axial AXIC0230 ball bearing, 10 × 15 × 4 mm size chart

dimension	value
part number	Axial AXIC0230
name (as printed)	AXA1230 Bearing 10x15x4mm
size (as printed)	10x15x4mm
bore	10 mm
outside diameter	15 mm
width	4 mm
seals / balls	as printed in the name; not modelled
used in	axial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)

SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 59

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axic0230-axa1230-bearing-10x15x4mm-envelope

Bearing envelope 10 × 15 × 4 mm (bore × OD × width)

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axic0230-axa1230-bearing-10x15x4mm

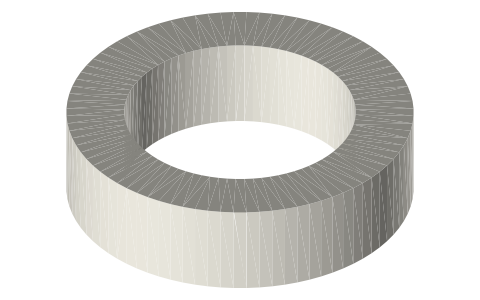

Axial AXIC0230 ball bearing, 10 × 15 × 4 mm, isometric render of a generated part — Render of axial-axic0230-axa1230-bearing-10x15x4mm-envelope from the free STEP; not to scale.
