Axial AXIC0725 14-tooth 32-pitch gear

Name: Axial AXIC0725 14-tooth 32-pitch gear dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What size is Axial AXIC0725 gear? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXIC0725, axial AXIC0725, Axial part AXIC0725, AXIC0725 ax30725 pinion gear 32p 14t, Axial AXIC0725 size, Axial AXIC0725 dimensions, Axial AXIC0725 replacement, repuesto Axial AXIC0725, Axial AXIC0725 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length: 12.69 mm
width: 12.49 mm
height: 1.0 mm

Notes

Axial part AXIC0725: AX30725 Pinion Gear 32p 14t. Size exactly as printed in Axial's parts list; the file is built from that size only.
14-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø12.70 OD — 1 mm reference (face width not printed).
True size, no printing tolerance added.

Axial AXIC0725 14-tooth 32-pitch gear size chart

dimension	value
part number	Axial AXIC0725
name (as printed)	AX30725 Pinion Gear 32p 14t
size (as printed)	32p; 14t
teeth	14
pitch	32 diametral pitch (module 0.7937 mm)
pitch diameter	11.11 mm
outside diameter	12.70 mm (standard addendum)
bore	not printed
face width	not printed
used in	axial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)

SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 59

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axic0725-ax30725-pinion-gear-32p-14t-profile

14-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø12.70 OD — 1 mm reference (face width not printed)

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axic0725-ax30725-pinion-gear-32p-14t

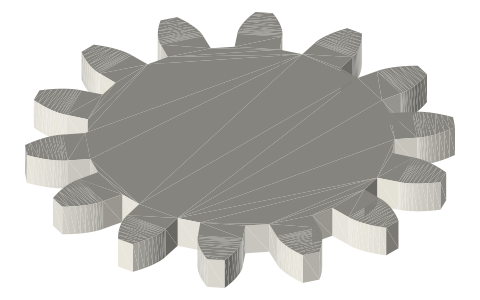

Axial AXIC0725 14-tooth 32-pitch gear, isometric render of a generated part — Render of axial-axic0725-ax30725-pinion-gear-32p-14t-profile from the free STEP; not to scale.
