Axial AXIC1243 ball bearing, 15 × 21 × 4 mm

What size is Axial bearing AXIC1243? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXIC1243, axial AXIC1243, Axial part AXIC1243, AXIC1243 axa1243 bearing 15x21x4mm, Axial AXIC1243 size, Axial AXIC1243 dimensions, Axial AXIC1243 replacement, repuesto Axial AXIC1243, Axial AXIC1243 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
21.01 mm
width
21.01 mm
height
4.01 mm

Notes

  • Axial part AXIC1243: AXA1243 Bearing 15x21x4mm (2). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • Bearing envelope 15 × 21 × 4 mm (bore × OD × width).
  • True size, no printing tolerance added.

Axial AXIC1243 ball bearing, 15 × 21 × 4 mm size chart

dimensionvalue
part numberAxial AXIC1243
name (as printed)AXA1243 Bearing 15x21x4mm (2)
size (as printed)15x21x4mm
bore15 mm
outside diameter21 mm
width4 mm
seals / ballsas printed in the name; not modelled
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 59webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axic1243-axa1243-bearing-15x21x4mm-envelopeBearing envelope 15 × 21 × 4 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axic1243-axa1243-bearing-15x21x4mm

Axial AXIC1243 ball bearing, 15 × 21 × 4 mm, isometric render of a generated part

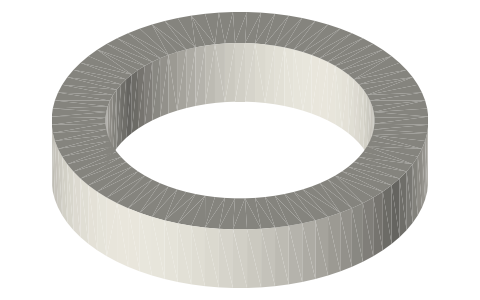

Render of axial-axic1243-axa1243-bearing-15x21x4mm-envelope from the free STEP; not to scale.
