Axial AXIC4406 ball bearing, 7 × 14 × 3.5 mm

What size is Axial bearing AXIC4406? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXIC4406, axial AXIC4406, Axial part AXIC4406, AXIC4406 ax31406 bearing 7x14x3.5mm, Axial AXIC4406 size, Axial AXIC4406 dimensions, Axial AXIC4406 replacement, repuesto Axial AXIC4406, Axial AXIC4406 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
14.01 mm
width
14.01 mm
height
3.51 mm

Notes

  • Axial part AXIC4406: AX31406 Bearing 7x14x3.5mm (2). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • Bearing envelope 7 × 14 × 3.5 mm (bore × OD × width).
  • True size, no printing tolerance added.

Axial AXIC4406 ball bearing, 7 × 14 × 3.5 mm size chart

dimensionvalue
part numberAxial AXIC4406
name (as printed)AX31406 Bearing 7x14x3.5mm (2)
size (as printed)7x14x3.5mm
bore7 mm
outside diameter14 mm
width3.5 mm
seals / ballsas printed in the name; not modelled
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 59webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axic4406-ax31406-bearing-7x14x3-5mm-envelopeBearing envelope 7 × 14 × 3.5 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axic4406-ax31406-bearing-7x14x3-5mm

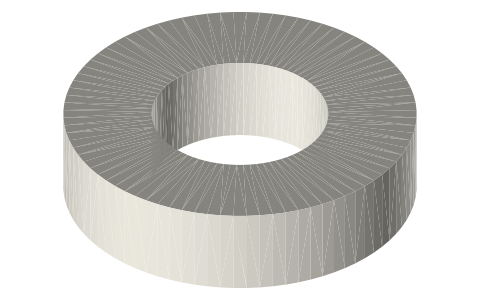

Axial AXIC4406 ball bearing, 7 × 14 × 3.5 mm, isometric render of a generated part
Render of axial-axic4406-ax31406-bearing-7x14x3-5mm-envelope from the free STEP; not to scale.

Fits with

Axial SCX10 III Jeep CJ-7 parts list, isometric render of a generated part
Axial SCX10 III Jeep CJ-7 parts list106 sizes★ 16 files
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15), isometric render of a generated part
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15)44 sizes★ 44 files

Questions

What size is Axial bearing AXIC4406?

7 × 14 × 3.5 mm
