BetaFPV Meteor75 / Beta75 Pro 2 whoop frame
What are the dimensions of the BetaFPV Meteor75 / Beta75 Pro 2 whoop frame? · Modern device · basis: Secondary source: GetFPV (copy of the maker's figures; the maker publishes none directly)
Also called: Beta75 Pro 2 frame dimensions, Beta75 Pro 2 battery slot, Meteor75 frame 26x26, 75mm whoop battery slot size, Beta75 Pro 2 props, BetaFPV 75mm frame weight, dimensiones Beta75 Pro 2, Beta75 Pro 2 Abmessungen
Exact dimensions. True size, with no printing tolerance added.
- length
- 26 mm
- width
- 26 mm
Notes
- Brushless 75 mm frame for 0802 motors.
- Only the FC pattern and battery slot are published as geometry.
- True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
- Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.
BetaFPV Meteor75 / Beta75 Pro 2 whoop frame size chart
| dimension | value |
|---|---|
| Diagonal motor-to-motor | 75 mm |
| FC mounting | 26 × 26 mm |
| Battery slot | 11.5 × 16 mm (BetaFPV 300 mAh 1S) |
| Props | 40 mm 4-blade, 1.0 mm shaft hole |
| Motors | 0802 12000KV |
| Weight | 5.5 g |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| GetFPV | BetaFPV Meteor75 / Beta75 Pro 2 Whoop Frame | web | Publisher's page; dimensions are facts |
Free files

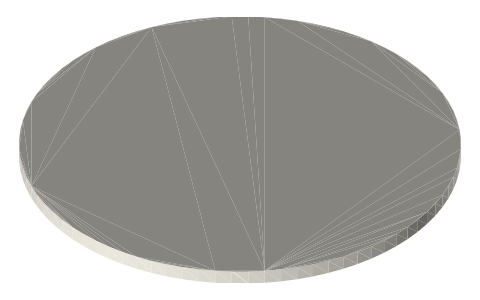

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=betafpv-beta75-pro-2-frame
Fits with
Questions
What battery fits the Beta75 Pro 2 frame?
The slot is 11.5 × 16 mm, sized for the BetaFPV 300 mAh 1S pack.
