BetaFPV Meteor65 Pro brushless whoop frame

What are the dimensions of the BetaFPV Meteor65 Pro brushless whoop frame? · Modern device · basis: Secondary source: KiwiQuads, GetFPV (copy of the maker's figures; the maker publishes none directly)

Also called: Meteor65 Pro frame dimensions, Meteor65 wheelbase, Meteor65 FC mounting, 65mm whoop frame size, Meteor65 prop size, Meteor65 Pro weight, dimensiones Meteor65, Meteor65 Abmessungen

Exact dimensions. True size, with no printing tolerance added.

length
26 mm
width
26 mm

Notes

  • 65 mm tiny-whoop frame.
  • The complete-quad listing gives 66 mm wheelbase; the frame listing gives 65 mm.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

BetaFPV Meteor65 Pro brushless whoop frame size chart

dimensionvalue
Wheelbase65 mm
FC mounting26 × 26 mm (25.5 × 25.5 compatible)
Motor mounting3 × M1.4 on Ø6.6 mm (1102, 0802SE)
Props35 mm or 31 mm
Weight3.20 g
Complete Meteor65 Pro (ELRS) weight28.53 g, 66 mm wheelbase listed

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

KiwiQuadsBetaFPV Meteor65 Pro Brushless Whoop FramewebPublisher's page; dimensions are facts
GetFPVBetaFPV Meteor65 Pro Brushless Whoop (ELRS)webPublisher's page; dimensions are facts

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

betafpv-meteor65-pro-frame-fc-hole-patternFC holes on a 26 × 26 mm square — template discSTEP · STL
betafpv-meteor65-pro-frame-motor-hole-patternsMotor mounts: 3 × M1.4 on Ø6.6 mm at the corners of a 65 mm diagonal — template discsSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=betafpv-meteor65-pro-frame

BetaFPV Meteor65 Pro brushless whoop frame, isometric render of a generated part
Render of betafpv-meteor65-pro-frame-motor-hole-patterns from the free STEP; not to scale.

Fits with

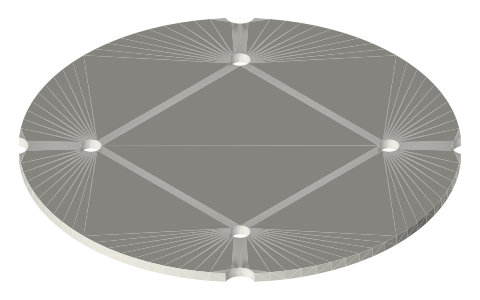

TBS Source One V5 5-inch frame, isometric render of a generated part
TBS Source One V5 5-inch frame30.5×30.5 mm★ 1 file
TBS Source One V5 7-inch DeadCat frame, isometric render of a generated part
TBS Source One V5 7-inch DeadCat frame30.5×30.5 mm★ 1 file

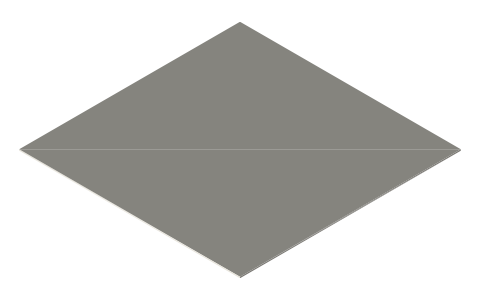

iFlight Nazgul XL5 V5.1 frame, isometric render of a generated part
iFlight Nazgul XL5 V5.1 frame170×170 mm★ 2 files
length
iFlight Nazgul XL5 ECO V1.1 frame173×173×36.5 mm★ 1 file

Questions

What props fit the Meteor65 Pro?

35 mm or 31 mm props.
