BetaFPV Meteor75 Pro brushless whoop frame

What are the dimensions of the BetaFPV Meteor75 Pro brushless whoop frame? · Modern device · basis: Secondary source: GetFPV (copy of the maker's figures; the maker publishes none directly)

Also called: Meteor75 Pro frame dimensions, Meteor75 Pro wheelbase, Meteor75 FC mounting 26x26, Meteor75 motor mount, 75mm whoop frame size, Meteor75 Pro prop size 45mm, dimensiones Meteor75 Pro, Meteor75 Pro Rahmen Abmessungen

Exact dimensions. True size, with no printing tolerance added.

length
26 mm
width
26 mm

Notes

  • Frame for the Meteor75 Pro 1S whoop.
  • Overall outline and duct size are not published.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

BetaFPV Meteor75 Pro brushless whoop frame size chart

dimensionvalue
Wheelbase80.8 mm
FC mounting26 × 26 mm (F4 1S 5A FC)
Motor mounting3 × M1.4 on Ø6.6 mm (1102, 0802SE)
Props45 mm 2- or 3-blade
Weight7.73 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GetFPVBetaFPV Meteor75 Pro Brushless Whoop FramewebPublisher's page; dimensions are facts

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

betafpv-meteor75-pro-frame-fc-hole-patternFC holes on a 26 × 26 mm square — template discSTEP · STL
betafpv-meteor75-pro-frame-motor-hole-patternsMotor mounts: 3 × M1.4 on Ø6.6 mm at the corners of a 80.8 mm diagonal — template discsSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=betafpv-meteor75-pro-frame

BetaFPV Meteor75 Pro brushless whoop frame, isometric render of a generated part

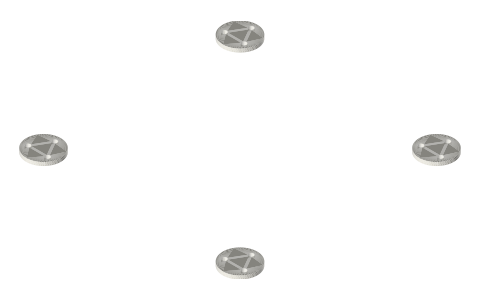

Render of betafpv-meteor75-pro-frame-motor-hole-patterns from the free STEP; not to scale.
