Bosch GBA 18V 2.0Ah battery (Bosch Professional 18V)

What are the dimensions of the Bosch GBA 18V 2.0Ah battery? · Modern device · basis: Bosch Professional (official) spec page

Also called: bosch gba 18v 2.0ah dimensions, bosch gba 18v 2.0ah size, bosch battery dimensions, batería Bosch GBA 18V 2.0Ah medidas, bateria Bosch GBA 18V 2.0Ah dimensões, Bosch GBA 18V 2.0Ah Akku Maße, batterie Bosch GBA 18V 2.0Ah dimensions

Exact dimensions. True size, with no printing tolerance added.

length
113 mm
width
73 mm
height
39 mm

Notes

  • Bosch GBA 18V 2.0Ah (Bosch Professional 18V, 2 Ah): 113 × 73 × 39 mm (4.45 × 2.87 × 1.54 in), 0.35 kg, as published by the maker.
  • Overall envelope only: the slide rail, latch and terminal geometry are not published by the maker (Xem measured scan planned).
  • The file is a plain envelope box of the published size — model your holder or adapter around it, then check a real pack.

Bosch GBA 18V 2.0Ah battery size chart

dimensionvalue
length113 mm
width73 mm
height39 mm
weight0.35 kg
capacity2 Ah
platformBosch Professional 18V

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

BoschGBA 18V 2.0Ah specificationswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

bosch-gba-18v-2-0ah-battery-envelopeEnvelope of the published size 113 × 73 × 39 mm (rail and terminals not modelled)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=bosch-gba-18v-2-0ah-battery

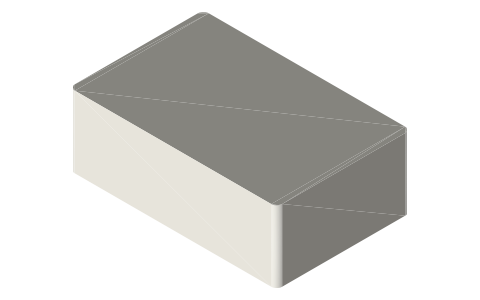

Bosch GBA 18V 2.0Ah battery (Bosch Professional 18V), isometric render of a generated part
Render of bosch-gba-18v-2-0ah-battery-envelope from the free STEP; not to scale.

Fits with

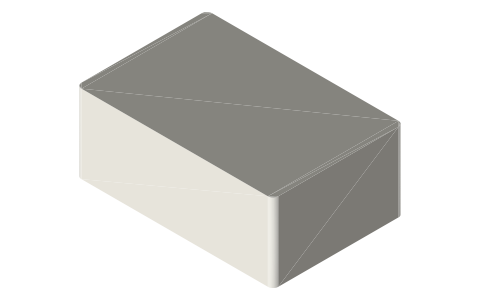

Makita BL1820B battery (18V LXT), isometric render of a generated part
Makita BL1820B battery (18V LXT)113×75×45 mm★ 1 file
Makita BL1850B battery (18V LXT), isometric render of a generated part
Makita BL1850B battery (18V LXT)113×75×62 mm★ 1 file
Makita BL1860B battery (18V LXT), isometric render of a generated part
Makita BL1860B battery (18V LXT)113×75×62 mm★ 1 file
Makita BL4025 battery (40V max XGT), isometric render of a generated part
Makita BL4025 battery (40V max XGT)118×77×65 mm★ 1 file

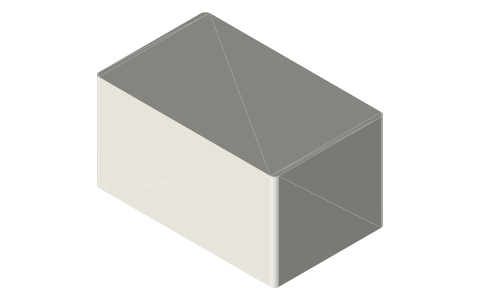

Makita BL4040 battery (40V max XGT), isometric render of a generated part
