Collins X-112 aerofoil boat (Lippisch, 1963)

What are the dimensions of the Collins X-112? · Modern device · basis: Secondary source: Wikipedia (copy of the maker's figures; the maker publishes none directly)

Also called: x-112 aerofoil boat dimensions, collins x-112 wingspan, lippisch x-112, lippisch reverse delta wing size, x-112 length, aerofoil boat specs, lippisch x-112 medidas, Lippisch Aerofoil Boot Abmessungen

Exact dimensions. True size, with no printing tolerance added.

length
7620 mm
width
4270 mm

Notes

  • The X-112 was Alexander Lippisch's first reverse-delta 'Aerofoil Boat', built at Collins Radio and described in Lippisch's US patent 3,190,582.
  • Height is not published, so the file models only a 7.62 × 4.27 m plan-view envelope (data from Jane's All the World's Aircraft 1964–65 via Wikipedia).
  • The patent text was not readable in this research pass, so no patent geometry is recorded. Marked secondary.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Collins X-112 aerofoil boat size chart

dimensionvalue
Length25 ft 0 in (7.62 m)
Wingspan14 ft 0 in (4.27 m)
Heightnot published
Wing area110 sq ft (10 m²)
Empty weight370 lb (168 kg)
Gross weight710 lb (322 kg)
Engine1 × 25 hp (19 kW), tractor, fixed-pitch propeller
Maximum speed77 mph (124 km/h) in free flight
Take-off speed35–38 mph (55–61 km/h)
Planformreverse (inverse) delta: straight unswept leading edge
First flight1963

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaCollins X-112 (after Jane's All the World's Aircraft 1964–65)webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

collins-x-112-aerofoil-boat-plan-outlinePlan outline 7620 × 4270 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=collins-x-112-aerofoil-boat

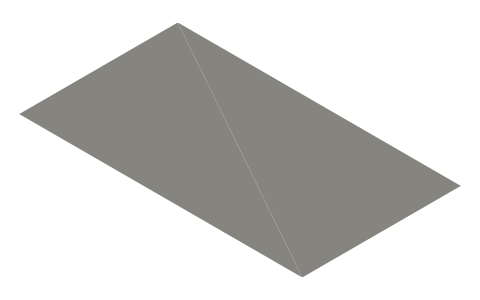

Collins X-112 aerofoil boat (Lippisch, 1963), isometric render of a generated part
Render of collins-x-112-aerofoil-boat-plan-outline from the free STEP; not to scale.

Fits with

length
RFB X-113 Am aerofoil boat (Lippisch, 1970)8430×5890×2070 mm★ 1 file
length
RFB X-114 aerofoil boat (Lippisch, 1977)12800×7000×2900 mm★ 1 file

Questions

What wing shape does the X-112 use?

A reverse (inverse) delta: triangular in plan with a straight, unswept leading edge.
