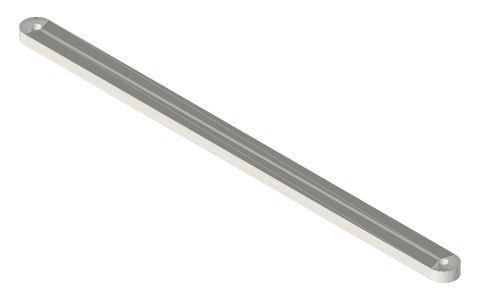

Cyclograph brace link, 165.71 mm centres
What does the cyclograph brace do? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: brace link, tirante, Strebe
Exact dimensions. True size, with no printing tolerance added.
- length
- 175.71 mm
- width
- 10.0 mm
- height
- 4.0 mm
Notes

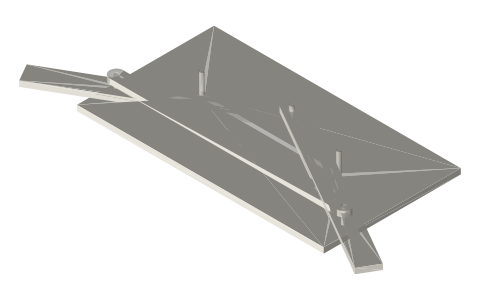

- 10 × 4 link with Ø3 holes 165.71 mm apart: pinned to the two rules' brace holes it fixes their edges at exactly 120°.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Cyclograph brace link, 165.71 mm centres size chart
| dimension | value |
|---|---|
| centres | 165.71 mm |
| section | 10 × 4 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 403: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Let your AI pull this. Add
Set it up →https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=cyclograph-brace-165-71
Fits with
Questions
What does the cyclograph brace do?
10 × 4 link with Ø3 holes 165.71 mm apart: pinned to the two rules' brace holes it fixes their edges at exactly 120°.
