DJI 3032S propeller, Ø75.66 mm

What size is the DJI 3032S propeller? · Modern device · basis: Maker's parts list (DJI)

Also called: DJI 3032S, dji 3032S, DJI part 3032S, 3032S dji avata 2 propeller (pair), DJI 3032S size, DJI 3032S dimensions, DJI 3032S replacement, repuesto DJI 3032S, DJI 3032S Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
75.71 mm
width
75.71 mm
height
1.05 mm

Notes

  • DJI part 3032S: DJI Avata 2 propeller (pair). Size exactly as printed in DJI's parts list; the file is built from that size only.
  • Swept disc Ø75.66 mm, 1 mm reference — blades and hub not published.
  • True size, no printing tolerance added.

DJI 3032S propeller, Ø75.66 mm size chart

dimensionvalue
part numberDJI 3032S
name (as printed)DJI Avata 2 propeller (pair)
size (as printed)Ø75.66 mm; approx. 1.74 g; pitch not published
diameter75.66 mm
used inDJI Avata 2

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

DJI StoreDJI Avata 2 PropellerswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

dji-3032s-dji-avata-2-propeller-pair-swept-discSwept disc Ø75.66 mm, 1 mm reference — blades and hub not publishedSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dji-3032s-dji-avata-2-propeller-pair

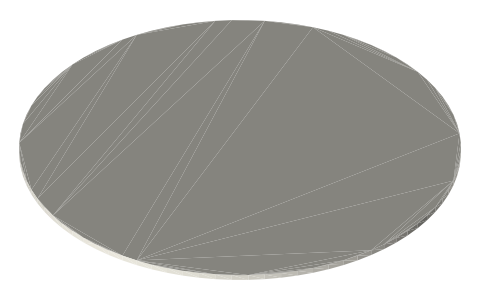

DJI 3032S propeller, Ø75.66 mm, isometric render of a generated part
Render of dji-3032s-dji-avata-2-propeller-pair-swept-disc from the free STEP; not to scale.

Fits with

DJI Avata 2 parts list, isometric render of a generated part
DJI Avata 2 parts list185×212×64 mm★ 2 files
length
DJI Avata 2185×212×64 mm★ 1 file

Questions

What size is the DJI 3032S propeller?

Ø75.66 mm
