DJI Mini 2 parts list

Name: DJI Mini 2 parts list dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What parts does the DJI Mini 2 use, and what sizes are they? · Modern device · basis: Maker's manual / official spare-parts listing: part numbers and sizes as printed

Also called: DJI Mini 2 part numbers, DJI Mini 2 replacement parts, DJI Mini 2 spare parts, DJI Mini 2 parts diagram, DJI Mini 2 exploded view, DJI Mini 2 bearings, DJI Mini 2 screw sizes, repuestos DJI Mini 2, DJI Mini 2 Ersatzteile

Exact dimensions. True size, with no printing tolerance added.

length: 138 mm
width: 81 mm
height: 58 mm

Notes

Every part number the maker publishes for the DJI Mini 2 — 4 parts, 3 with sizes printed in the source (bearings, screws, pins, props, servos, motors, batteries…). Sizes are copied exactly as printed; "not published" means the source gives none.
The file is the vehicle's own true-size envelope (the same as its main page). Molded parts' shapes are not published, so they are not modelled; standard hardware links to its own pages.
Use it to rebuild or re-print the vehicle: order the numbered parts, print the rest to the published sizes.

DJI Mini 2 parts list size chart

part number	part	group	sizes (as printed)	qty	also fits
4726 FM	DJI Mini 2 propeller (pair)	props	4.7 × 2.6 in (119.38 × 66.04 mm); 0.6 g each; screw-on (two screws per blade root)	Propeller (pair) × 2 per pack	dji-mini-2-se, dji-mini-4k, dji-mini-se
BWX161-2250-7.7	DJI Mini 2 Intelligent Flight Battery	battery	2250 mAh; 7.7 V rated, 8.8 V charge limit; LiPo 2S; max charge 29 W; dimensions not published	1	dji-mini-2-se, dji-mini-4k, dji-mini-se
not published	Propeller screw (supplied with DJI Mini 2 Propellers)	hardware	thread and length not published	12 per propeller pack	dji-mini-2-se, dji-mini-4k, dji-mini-se
not published	Propeller screwdriver (included with aircraft)	hardware	not published	1	—

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

DJI Store	DJI Mini 2 Propellers	web	Publisher's page; dimensions are facts
DJI Store	DJI Mini 2 Intelligent Flight Battery	web	Publisher's page; dimensions are facts
DJI	DJI Mini 2 support / specs	web	Publisher's page; dimensions are facts

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

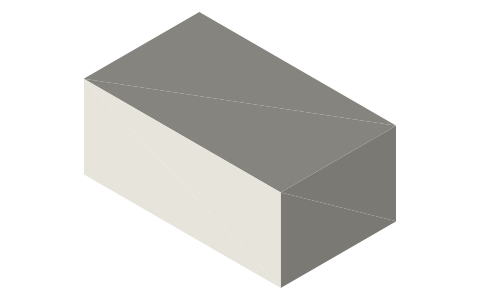

dji-mini-2-envelope	Envelope 138 × 81 × 58 mm (folded, without propellers (L×W×H))	STEP · STL
dji-4726-fm-dji-mini-2-propeller-pair-swept-disc	Swept disc Ø119.38 mm, 1 mm reference — blades and hub not published	STEP · STL
