DJI Osmo Action 4

What are the dimensions of the DJI Osmo Action 4? · Modern device · basis: DJI specifications page

Also called: dji osmo action 4 dimensions, dji osmo action 4 size, osmo action 4 dimensions, DJI Osmo Action 4 medidas, DJI Osmo Action 4 dimensões, DJI Osmo Action 4 Maße, DJI Osmo Action 4 dimensions

Exact dimensions. True size, with no printing tolerance added.

length
70.5 mm
width
44.2 mm
height
32.8 mm

Notes

  • DJI Osmo Action 4: 70.5 × 44.2 × 32.8 mm (2.78 × 1.74 × 1.29 in), 145 g.
  • Axes: DJI publishes L × W × H; same body size as the Action 5 Pro.
  • The file is a rounded envelope box of the published size (lens, buttons and ports not modelled; detail scan planned).

DJI Osmo Action 4 size chart

dimensionvalue
size70.5 × 44.2 × 32.8 mm (2.78 × 1.74 × 1.29 in)
weight145 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

DJIOsmo Action 4 specificationswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

dji-osmo-action-4-envelopeEnvelope 70.5 × 44.2 × 32.8 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dji-osmo-action-4

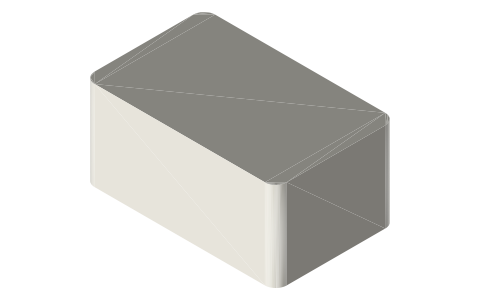

DJI Osmo Action 4, isometric render of a generated part
Render of dji-osmo-action-4-envelope from the free STEP; not to scale.

Fits with

GoPro HERO12 Black, isometric render of a generated part
GoPro HERO12 Black71.8×50.8×33.6 mm★ 1 file

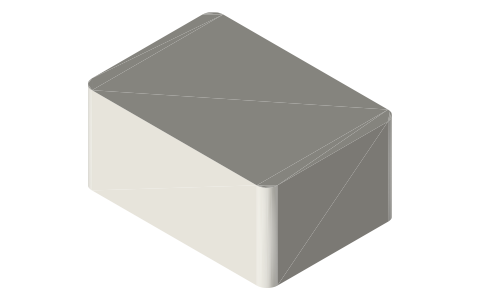

GoPro HERO11 Black, isometric render of a generated part
GoPro HERO11 Black71.8×50.8×33.6 mm★ 1 file

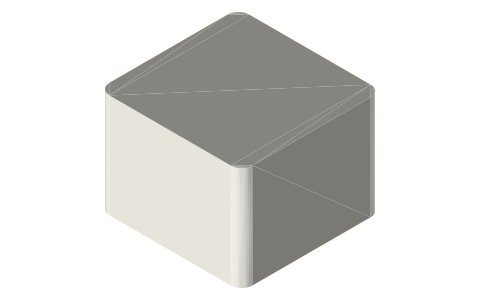

GoPro HERO11 Black Mini, isometric render of a generated part
GoPro HERO11 Black Mini52.4×51.2×38.0 mm★ 1 file
DJI Osmo Action 5 Pro, isometric render of a generated part
DJI Osmo Action 5 Pro70.5×44.2×32.8 mm★ 1 file

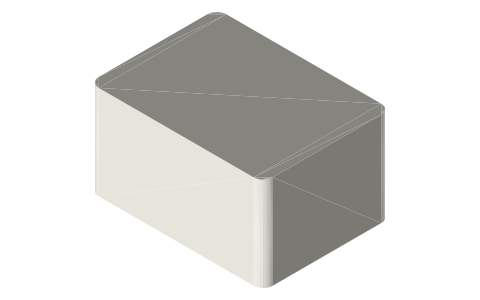

Insta360 Ace Pro 2, isometric render of a generated part
Insta360 Ace Pro 273.2×53.7×39.5 mm★ 1 file
Insta360 GO 3S Action Pod, isometric render of a generated part
Insta360 GO 3S Action Pod63.5×47.6×29.5 mm★ 2 files

Questions

How big is the DJI Osmo Action 4?

70.5 × 44.2 × 32.8 mm (2.78 × 1.74 × 1.29 in).
