Du-Bro Super Lite wheel 2-1/4 in (DUB225SL)

Name: Du-Bro Super Lite wheel 2-1/4 in (DUB225SL) dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Du-Bro Super Lite wheel 2-1/4 in? · Modern device · basis: Secondary source: HobbyEtc (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: dubro 2 1/4 wheel, du-bro super lite 2.25, dub225sl, 57mm rc plane wheel, dubro wheel axle size, super lite wheel width, rueda dubro 57mm, dubro rad 57 mm

Exact dimensions. True size, with no printing tolerance added.

length: 57.1 mm
width: 57.1 mm
height: 19.7 mm

Notes

Retailer copy of Du-Bro data (secondary). Du-Bro notes the hole may need reaming for larger axles.
True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Du-Bro Super Lite wheel 2-1/4 in size chart

dimension	value
Diameter	57.1 mm (2-1/4 in)
Width	19.7 mm (0.776 in)
Axle hole	4.4 mm (0.176 in)
Weight	8.14 g per wheel

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

HobbyEtc (retailer)

Super Lite Wheels 2-1/4 inch (2)

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

du-bro-super-lite-wheel-2-1-4-envelope

Cylinder Ø57.1 × 19.7 mm with a Ø4.4 mm axle hole (tread not modelled)

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=du-bro-super-lite-wheel-2-1-4

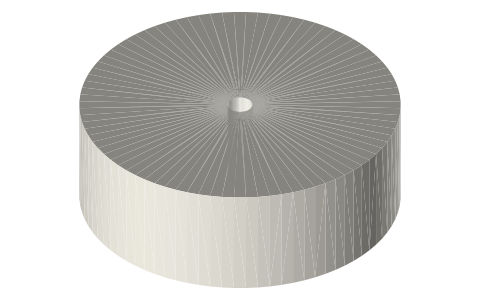

Du-Bro Super Lite wheel 2-1/4 in (DUB225SL), isometric render of a generated part — Render of du-bro-super-lite-wheel-2-1-4-envelope from the free STEP; not to scale.

Fits with

Free

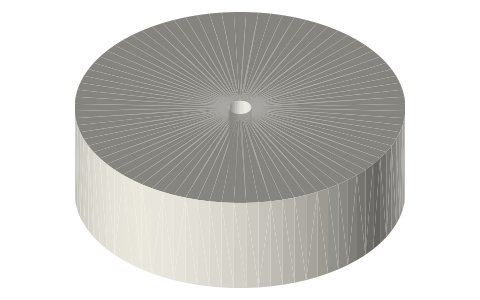

Du-Bro Diamond Lite wheel 2-1/2 in (63.5 mm), isometric render of a generated part

Du-Bro Diamond Lite wheel 2-1/2 in (63.5 mm)63.5×63.5×20 mm★ 1 file Free

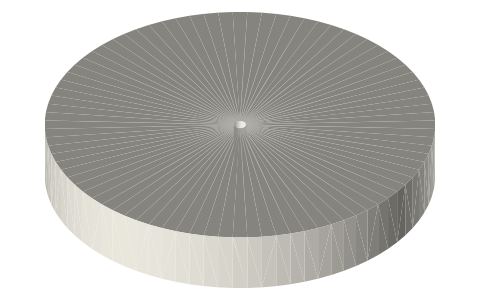

Du-Bro Micro Sport wheel 2.5 in (DUB250MS), isometric render of a generated part

Du-Bro Micro Sport wheel 2.5 in (DUB250MS)63×63×10 mm★ 1 file

Questions

What axle fits the Du-Bro 2-1/4 Super Lite?

The hole is 4.4 mm (0.176 in).
