E-flite Apprentice STS 1.5m (smart trainer)

What are the dimensions of the E-flite Apprentice STS 1.5m? · Modern device · basis: Secondary source: RaceDayQuads (copy of Horizon Hobby spec table) (copy of the maker's figures; the maker publishes none directly)

Also called: apprentice sts dimensions, e-flite apprentice sts wingspan, apprentice sts 1.5m length, efl3700 specs, efl3750 apprentice specifications, apprentice sts cg, apprentice sts battery size, e-flite apprentice trainer size, apprentice sts envergadura, apprentice sts spannweite, apprentice sts medidas

Exact dimensions. True size, with no printing tolerance added.

length
1080 mm
width
1499 mm

Notes

  • The Apprentice STS is E-flite's 1.5 m high-wing trainer (EFL3700 RTF / EFL3750 BNF Basic). The file models only the wingspan × length plan-view envelope.
  • Height, wing area and prop size are not published on the listing used; the figures come from a retailer copy of Horizon Hobby's spec table, so the entry is marked secondary.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

E-flite Apprentice STS 1.5m size chart

dimensionvalue
Wingspan59 in (1499 mm)
Length42.5 in (1080 mm)
Flying weight1500–2000 g
MotorBrushless outrunner (installed); size/Kv not published on listing
Servos(2) 13 g digital and (4) 37 g servos (installed)
Recommended battery3S 11.1 V 3200–4000 mAh LiPo, EC3 or IC3 connector
CG3.125 in (79 mm) behind wing leading edge at the fuselage
Heightnot published
Wing areanot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

RaceDayQuads (copy of Horizon Hobby spec table)E-flite Apprentice STS 1.5m RTF BasicwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

e-flite-apprentice-sts-1-5m-plan-outlinePlan outline 1080 × 1499 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=e-flite-apprentice-sts-1-5m

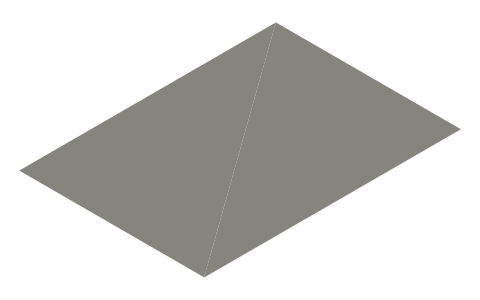

E-flite Apprentice STS 1.5m (smart trainer), isometric render of a generated part
Render of e-flite-apprentice-sts-1-5m-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files
E-flite Timber X 1.2m (STOL / 3D bush plane), isometric render of a generated part
E-flite Timber X 1.2m (STOL / 3D bush plane)1055×1200 mm★ 1 file
E-flite Valiant 1.3m (high-wing sport plane), isometric render of a generated part
E-flite Valiant 1.3m (high-wing sport plane)960×1350 mm★ 1 file

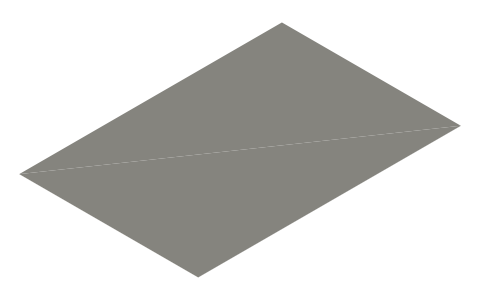

E-flite Carbon-Z Cub SS 2.1m, isometric render of a generated part
E-flite Carbon-Z Cub SS 2.1m1430×2100 mm★ 1 file

Questions

What battery fits the Apprentice STS?

Horizon specifies a 3S 11.1 V 3200–4000 mAh LiPo with EC3 or IC3 connector.

Where is the Apprentice STS CG?

3.125 in (79 mm) back from the wing leading edge, measured at the fuselage.
