E-flite Timber X 1.2m (STOL / 3D bush plane) parts list
What parts does the E-flite Timber X 1.2m (STOL / 3D bush plane) use, and what sizes are they? · Modern device · basis: Maker's manual / official spare-parts listing: part numbers and sizes as printed
Also called: E-flite Timber X 1.2m (STOL / 3D bush plane) part numbers, E-flite Timber X 1.2m (STOL / 3D bush plane) replacement parts, E-flite Timber X 1.2m (STOL / 3D bush plane) spare parts, E-flite Timber X 1.2m (STOL / 3D bush plane) parts diagram, E-flite Timber X 1.2m (STOL / 3D bush plane) exploded view, E-flite Timber X 1.2m (STOL / 3D bush plane) bearings, E-flite Timber X 1.2m (STOL / 3D bush plane)
Exact dimensions. True size, with no printing tolerance added.
- length
- 1055 mm
- width
- 1200 mm
Notes
- Every part number the maker publishes for the E-flite Timber X 1.2m (STOL / 3D bush plane) — 34 parts, 12 with sizes printed in the source (bearings, screws, pins, props, servos, motors, batteries…). Sizes are copied exactly as printed; "not published" means the source gives none.
- The file is the vehicle's own true-size envelope (the same as its main page). Molded parts' shapes are not published, so they are not modelled; standard hardware links to its own pages.
- Use it to rebuild or re-print the vehicle: order the numbered parts, print the rest to the published sizes.
E-flite Timber X 1.2m (STOL / 3D bush plane) parts list size chart
| part number | part | group | sizes (as printed) | qty | also fits |
|---|---|---|---|---|---|
| EFL3851 | Fuselage | airframe | not published | not published | — |
| EFL3856 | Decal set | airframe | not published | not published | — |
| EFL5253 | Battery hatch | airframe | not published | not published | — |
| EFL5254 | Cowl | airframe | not published | not published | — |
| EFL5265 | Plastic parts set | airframe | not published | not published | — |
| EFL5266 | Decal sheet | airframe | not published | not published | — |
| EFL3852 | Wing set | wing | not published | not published | — |
| EFL3855 | Leading edge slats | wing | not published | not published | — |
| EFL3853 | Horizontal stabilizer with tube | tail | not published | not published | — |
| EFL3854 | Steel stabilizer joiner | tail | not published | not published | — |
| EFL5257 | Landing gear set | landing gear | not published | not published | — |
| EFL5258 | Wheel set | landing gear | not published | not published | — |
| EFL5261 | Float set | landing gear | not published | not published | — |
| EFL5267 | Landing gear retainer | landing gear | not published | not published | — |
| EFL5262 | Spinner | power system | not published | not published | — |
| EFL5263 | Prop adapter | power system | not published | not published | — |
| EFL5264 | Motor mount | power system | not published | not published | — |
| EFLA1050 | 50A brushless ESC | power system | 50A | not published | — |
| EFLAEC302 | EC3 battery connector, female (2) | power system | EC3 | not published | amass-ec3-connector-female |
| EFLAEC303 | EC3 device/battery connector, male/female | power system | EC3 | not published | amass-ec3-connector-male, amass-ec3-connector-female |
| EFLB22003S30 | 11.1V 3S 30C 2200mAh Li-Po | power system | 3S 2200mAh 30C | not published | rc-lipo-batteries, e-flite-valiant-1-3m |
| EFLB22004S30 | 14.4V 4S 30C 2200mAh Li-Po | power system | 4S 2200mAh 30C | not published | rc-lipo-batteries |
| EFLB25003S30 | 11.1V 3S 30C 2500mAh Li-Po | power system | 3S 2500mAh 30C | not published | rc-lipo-batteries |
| EFLB32003S30 | 11.1V 3S 30C 3200mAh Li-Po | power system | 3S 3200mAh 30C | not published | rc-lipo-batteries |
| EFLB32004S30 | 14.4V 4S 30C 3200mAh Li-Po | power system | 4S 3200mAh 30C | not published | rc-lipo-batteries |
| EFLM108019 | Motor shaft (Ultimate 2) | power system | not published | not published | — |
| EFLM17533 | 10BL brushless outrunner motor, 900Kv | power system | 10-size, 900Kv | not published | — |
| EFLP1304E | Propeller, 13 x 4 | power system | 13 x 4 | not published | — |
| EFL5260 | Pushrod set | servos/linkages | not published | not published | — |
| SPMSA332 | 9-gram metal geared servo | servos/linkages | 9 g | not published | — |
| SPMA3065 | AS3X programming cable, USB interface | electronics | not published | not published | — |
| SPMA3081 | AS3X programming cable, audio interface | electronics | not published | not published | — |
| SPMAR636 | AR636 6-channel AS3X sport receiver | electronics | 6-channel | not published | — |
| EFL5256 | Hardware set | hardware | not published | not published | — |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Horizon Hobby / E-flite (manual hosted by Lindinger) | Timber X 1.2m instruction manual (EN), Replacement Parts, p. 67 | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

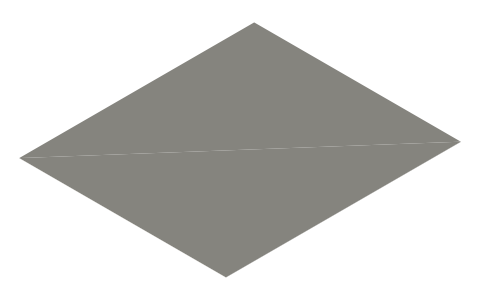

| e-flite-timber-x-1-2m-plan-outline | Plan outline 1055 × 1200 mm, 1 mm reference thickness (height not published) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=e-flite-timber-x-1-2m-parts-list
Fits with
Questions
Where do the E-flite Timber X 1.2m (STOL / 3D bush plane) part numbers come from?
The maker's manual or official spare-parts listing; every row cites its source.
How many parts are listed for the E-flite Timber X 1.2m (STOL / 3D bush plane)?
34, of which 12 have sizes printed by the maker.
