E-flite Valiant 1.3m (high-wing sport plane) parts list

What parts does the E-flite Valiant 1.3m (high-wing sport plane) use, and what sizes are they? · Modern device · basis: Maker's manual / official spare-parts listing: part numbers and sizes as printed

Also called: E-flite Valiant 1.3m (high-wing sport plane) part numbers, E-flite Valiant 1.3m (high-wing sport plane) replacement parts, E-flite Valiant 1.3m (high-wing sport plane) spare parts, E-flite Valiant 1.3m (high-wing sport plane) parts diagram, E-flite Valiant 1.3m (high-wing sport plane) exploded view, E-flite Valiant 1.3m (high-wing sport plane) bearings, E-flite Valiant 1.3m (high-wing sport plane)

Exact dimensions. True size, with no printing tolerance added.

length
960 mm
width
1350 mm

Notes

  • Every part number the maker publishes for the E-flite Valiant 1.3m (high-wing sport plane) — 25 parts, 8 with sizes printed in the source (bearings, screws, pins, props, servos, motors, batteries…). Sizes are copied exactly as printed; "not published" means the source gives none.
  • The file is the vehicle's own true-size envelope (the same as its main page). Molded parts' shapes are not published, so they are not modelled; standard hardware links to its own pages.
  • Use it to rebuild or re-print the vehicle: order the numbered parts, print the rest to the published sizes.

E-flite Valiant 1.3m (high-wing sport plane) parts list size chart

part numberpartgroupsizes (as printed)qtyalso fits
EFL4951Painted Valiant 1.3 fuseairframenot publishednot published—
EFL4960Valiant 1.3 Plastic part set (cowl, door, joiner)airframenot publishednot published—
EFL4952Painted Valiant 1.3 wingwingnot publishednot published—
EFL4953Valiant 1.3 carbon wing tubewingnot publishednot published—
EFL4961Valiant 1.3 Vertical Fin/Ruddertailnot publishednot published—
EFL4962Valiant 1.3 Horizontal stab / elevatortailnot publishednot published—
EFL4955Valiant 1.3 Landing gear setlanding gearnot publishednot published—
EFL4957Valiant 1.3 Float Strutslanding gearnot publishednot published—
HBZ7390Float setlanding gearnot publishednot publishedhobbyzone-carbon-cub-s-2-1-3m
EFL4954Valiant 1.3 Spinnerpower systemnot publishednot published—
EFL4959Valiant 1.3 Motor mount/hardwarepower systemnot publishednot published—
EFLA1030B30-Amp Pro Switch-Mode BEC Brushless ESC (V2)power system30Anot published—
EFLAEC302EC3 Battery Connector, Female (2)power systemEC3not publishedamass-ec3-connector-female, e-flite-timber-x-1-2m
EFLAEC303EC3 Device/Battery Connector, Male/Femalepower systemEC3not publishedamass-ec3-connector-male, amass-ec3-connector-female, e-flite-timber-x-1-2m
EFLB22003S3011.1V 3S 30C 2200mAh Li-Popower system3S 2200mAh 30Cnot publishedrc-lipo-batteries, e-flite-timber-x-1-2m
EFLB22003S5011.1V 3S 50C 2200mAh Li-Popower system3S 2200mAh 50Cnot publishedrc-lipo-batteries
PKZ4416480 BL Outrunner Motor; 960Kvpower system480-size, 960Kvnot published—
PKZ6901Propeller: 10.75 X 8power system10.75 X 8not published—
EFL4958Valiant 1.3 pushrod setservos/linkagesnot publishednot published—
PKZ1080SV80 Short Lead 3-Wire Servo: AB3servos/linkagesnot publishednot published—
PKZ1081SV80 Long Lead 3-wire servo: T28servos/linkagesnot publishednot published—
SPMA3065AS3X Programming Cable - USB Interfaceelectronicsnot publishednot published—
SPMA3081AS3X Programming Cable - Audio Interfaceelectronicsnot publishednot published—
SPMAR636AR636 6-Channel AS3X Sport Receiverelectronics6-channelnot publishede-flite-timber-x-1-2m
EFL4956Valiant 1.3 Hardware/screw sethardwarenot publishednot published—

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Horizon Hobby / E-flite (manual hosted by Lindinger)Valiant 1.3m manual (EN), Replacement Parts, p. 67webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

e-flite-valiant-1-3m-plan-outlinePlan outline 960 × 1350 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=e-flite-valiant-1-3m-parts-list

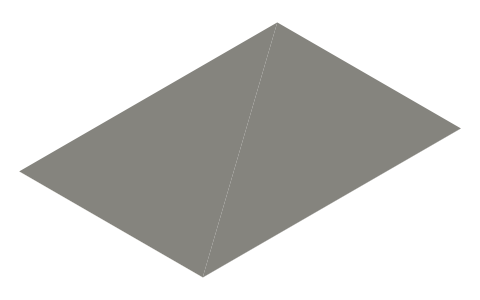

E-flite Valiant 1.3m (high-wing sport plane) parts list, isometric render of a generated part
Render of e-flite-valiant-1-3m-plan-outline from the free STEP; not to scale.

Fits with

E-flite Valiant 1.3m (high-wing sport plane), isometric render of a generated part
E-flite Valiant 1.3m (high-wing sport plane)960×1350 mm★ 1 file
length
Amass EC3 connector (female / socket)16.5×7.5×16 mm★ 1 file
length
Amass EC3 connector (male / plug, EC3-M)16.5×7.5×16 mm★ 1 file
E-flite Timber X 1.2m (STOL / 3D bush plane), isometric render of a generated part
E-flite Timber X 1.2m (STOL / 3D bush plane)1055×1200 mm★ 1 file
HobbyZone Carbon Cub S 2 1.3m, isometric render of a generated part
HobbyZone Carbon Cub S 2 1.3m865×1300 mm★ 1 file
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

Questions

Where do the E-flite Valiant 1.3m (high-wing sport plane) part numbers come from?

The maker's manual or official spare-parts listing; every row cites its source.

How many parts are listed for the E-flite Valiant 1.3m (high-wing sport plane)?

25, of which 8 have sizes printed by the maker.
