Egg crate joint (slot joint, cross halving on edge)
How deep are the slots in an egg crate joint? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: egg crate joint, slot joint, half lap slot, box divider joint, cross slot joint, drawer divider slots, ensamble de ranura cruzada, Kreuzschlitz Verbindung, Steckverbindung
Exact dimensions. True size, with no printing tolerance added.
- length
- 80.0 mm
- width
- 80.0 mm
- height
- 60.0 mm
Notes

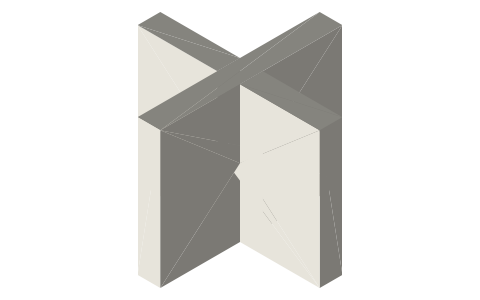

- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- Two boards slotted halfway, one from each edge, so they cross flush — dividers, grids, organisers, and flat-pack frames.
Egg crate joint size chart
| dimension | value |
|---|---|
| stock | 10 mm boards, 60 mm wide |
| parts | board a, board b |
| slots | 10 mm wide (the board), 30 mm deep (half the width) |
| assembles | B slides down onto A |
| holds | the boards square to each other; makes grids, dividers and box inserts |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Joinery design (geometry computed in the generator from traditional proportions) | web | Xem Studio design |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
| egg-crate-joint-board-a | Board slotted from the top, half its width | STEP · STL |
| egg-crate-joint-board-b | Board slotted from the bottom, half its width | STEP · STL |
| egg-crate-joint-assembled | All parts in their assembled position (each part its own solid) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=egg-crate-joint
Fits with
Questions
How deep are egg crate slots?
Half the board width on each board, as wide as the board is thick.
