EMAX ECO 2207 motor

What are the dimensions of the EMAX ECO 2207 motor? · Modern device · basis: Secondary source: FPV Faster (copy of the maker's figures; the maker publishes none directly)

Also called: EMAX ECO 2207 dimensions, Emax Eco 2207 size, Emax Eco 2207 mounting holes, Emax Eco 2207 shaft, Emax Eco 2207 2400kv weight, Emax 2207 motor diameter, dimensiones Emax ECO 2207, Emax ECO 2207 Abmessungen, Emax ECO 2207 16x16

Exact dimensions. True size, with no printing tolerance added.

length
27.45 mm
width
27.45 mm
height
32.6 mm

Notes

  • Original EMAX ECO 2207 (not ECO II), as listed by FPV Faster.
  • The file is a cylinder with the 16 × 16 mm base pattern; M3 thread is the common size for this pattern but the listing does not state the screw size, so holes are drawn as pattern centres only.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

EMAX ECO 2207 motor size chart

dimensionvalue
Motor dimensionsØ27.45 × 32.6 mm
Bearing shaft4 mm
Prop shaftM5 (CCW thread)
Mounting pattern16 × 16 mm
Weight31.4 g without wires
KV options1700, 1900, 2400 KV

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

FPV FasterEMAX ECO 2207 Motor 2400KVwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

emax-eco-2207-envelopeØ27.45 × 32.6 mm body, 4 × M3 (Ø3) on a 16 × 16 mm square in the baseSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=emax-eco-2207

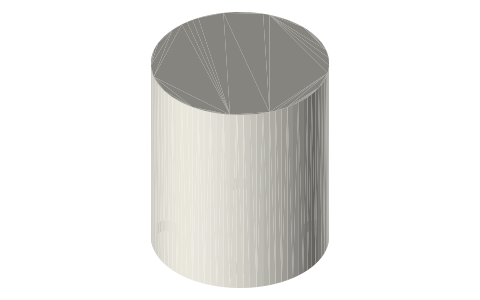

EMAX ECO 2207 motor, isometric render of a generated part
Render of emax-eco-2207-envelope from the free STEP; not to scale.

Fits with

FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns, isometric render of a generated part
FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns12 sizes★ 10 files
T-Motor F60 PRO V motor (2207.5), isometric render of a generated part
T-Motor F60 PRO V motor (2207.5)26.8×26.8×31.7 mm★ 1 file

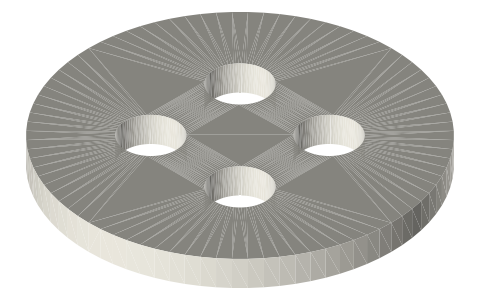

BetaFPV LAVA 1102 14000KV brushless motor, isometric render of a generated part
BetaFPV LAVA 1102 14000KV brushless motor6.6×6.6×5 mm★ 2 files
BetaFPV 1102 18000KV brushless motor, isometric render of a generated part
BetaFPV 1102 18000KV brushless motor6.6×6.6×15.2 mm★ 1 file

Questions

What is the EMAX ECO 2207 mount pattern?

16 × 16 mm, M5 prop shaft, body Ø27.45 × 32.6 mm.
