Emax MT2213 935 Kv outrunner

Name: Emax MT2213 935 Kv outrunner dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Emax MT2213 935 Kv outrunner? · Modern device · basis: Secondary source: RCDrone.top (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: emax mt2213 dimensions, mt2213 935kv size, mt2213 shaft, emax 2213 motor, mt2213 weight, f450 motor size, mt2213 medidas, mt2213 abmessungen

Exact dimensions. True size, with no printing tolerance added.

length: 27.9 mm
width: 27.9 mm
height: 39.7 mm

Notes

Retailer copy of Emax specs (secondary). The 39.7 mm length is the listed overall length; the can-only height and mount pattern are not published.
True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Emax MT2213 935 Kv outrunner size chart

dimension	value
Diameter	27.9 mm
Length	39.7 mm (as listed; includes prop shaft/thread)
Shaft	3 mm
Configuration	12N14P
Weight	53 g
Kv	935
Props	8–10 in
Cells	3–4S LiPo

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

RCDrone.top (retailer)

EMAX MT2213 935KV

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

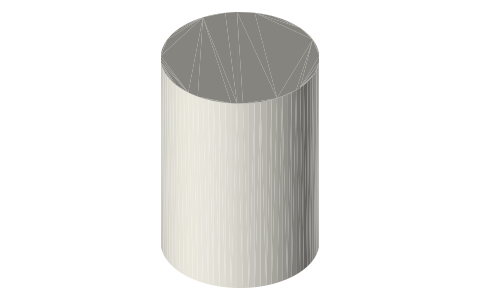

emax-mt2213-935kv-envelope

Envelope Ø27.9 × 39.7 mm (Motor can outside diameter × body length (shaft and mount not included))
