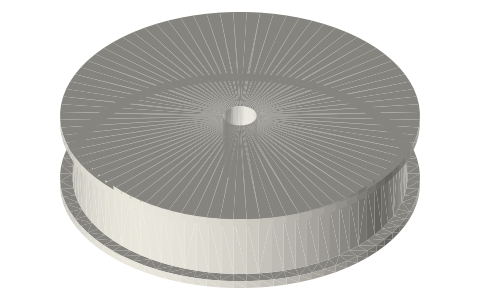

Flanged flat-belt pulley Ø80, 16 mm face, Ø8 bore
What is a Ø80 flat belt pulley? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: flat belt pulley, flanged pulley, polea para correa plana, Flachriemenscheibe
Exact dimensions. True size, with no printing tolerance added.
- length
- 86.0 mm
- width
- 86.0 mm
- height
- 20.0 mm
Notes
- Ø80 × 16 mm straight face between two Ø86 × 2 flanges (20 wide overall), Ø8 bore: carries a 16 mm flat belt.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Flanged flat-belt pulley Ø80, 16 mm face, Ø8 bore size chart
| dimension | value |
|---|---|
| face | Ø80 × 16 mm |
| flanges | Ø86 × 2 |
| bore | Ø8 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 1: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=flanged-flat-pulley-80
Fits with
Questions
What is a Ø80 flat belt pulley?
Ø80 × 16 mm straight face between two Ø86 × 2 flanges (20 wide overall), Ø8 bore: carries a 16 mm flat belt.
