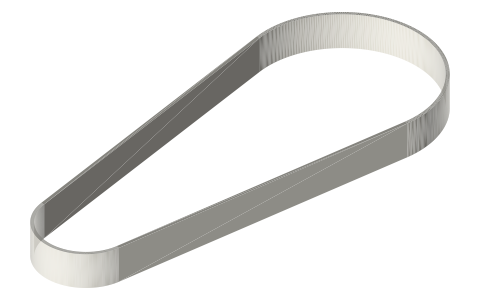

Flat belt 16 × 1.5 for Ø40 and Ø80 plain pulleys at 140 mm (loop drawn)
How long is the belt? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: flat belt, correa plana, Flachriemen
Exact dimensions. True size, with no printing tolerance added.
- length
- 83.0 mm
- width
- 203.0 mm
- height
- 16.0 mm
Notes
- Open flat belt 16 × 1.5 mm for a Ø40 and a Ø80 pulley 140 mm apart: inside length 471.36 mm; the same belt runs Ø80 → Ø40 or Ø40 → Ø80.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Flat belt 16 × 1.5 for Ø40 and Ø80 plain pulleys at 140 mm size chart
| dimension | value |
|---|---|
| width × thickness | 16 × 1.5 mm |
| inside length | 471.36 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 60: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=flat-belt-16x1-5-pulleys-40-80-c140-open
Fits with
Questions
How long is the belt?
Open flat belt 16 × 1.5 mm for a Ø40 and a Ø80 pulley 140 mm apart: inside length 471.36 mm; the same belt runs Ø80 → Ø40 or Ø40 → Ø80.
