FMS Kingfisher 1400mm (wheels, floats, skis)

What are the dimensions of the FMS Kingfisher 1400mm? · Modern device · basis: Secondary source: Racer.lt (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: fms kingfisher dimensions, kingfisher 1400mm wingspan, fms kingfisher length, kingfisher prop size, kingfisher cg, kingfisher battery, kingfisher wing area, fms kingfisher spannweite, fms kingfisher envergadura

Exact dimensions. True size, with no printing tolerance added.

length
915 mm
width
1400 mm

Notes

  • Retailer copy of FMS specs (secondary). Plan-view envelope only.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

FMS Kingfisher 1400mm size chart

dimensionvalue
Wingspan1400 mm
Length915 mm
Wing area29.1 dm²
Flying weightaround 1400 g
Wing loading48.1 g/dm²
Motor3536 850 Kv brushless
ESC40 A
Propeller11 × 7
Servos6 × 9 g
Battery3S 11.1 V 2200 mAh 35C, XT60
CG60 mm from leading edge
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Racer.lt (retailer)FMS Kingfisher 1400mm PNPwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

fms-kingfisher-1400mm-plan-outlinePlan outline 915 × 1400 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=fms-kingfisher-1400mm

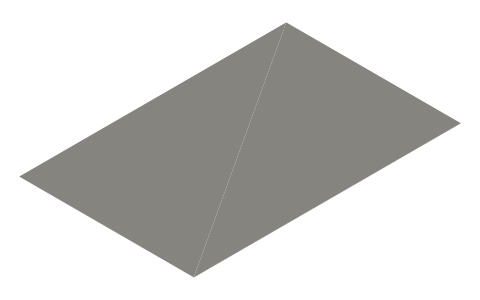

FMS Kingfisher 1400mm (wheels, floats, skis), isometric render of a generated part
Render of fms-kingfisher-1400mm-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

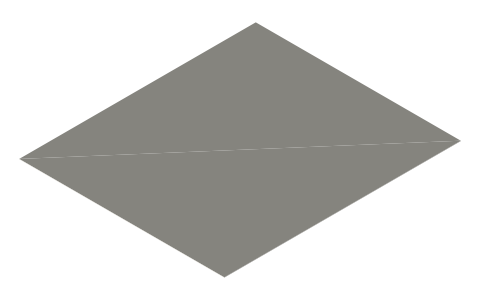

Volantex P-51D Mustang 768-1 750mm, isometric render of a generated part
Volantex P-51D Mustang 768-1 750mm650×750 mm★ 1 file

Questions

What prop does the FMS Kingfisher use?

11 × 7 on a 3536 850 Kv motor.
