FMS Ranger 1220mm (trainer with floats)

What are the dimensions of the FMS Ranger 1220mm? · Modern device · basis: Secondary source: KiwiQuads (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: fms ranger 1220 dimensions, fms ranger wingspan, fms ranger 1220mm length, fms ranger prop size, fms ranger battery, fms ranger cg, fms ranger wing area, fms ranger 3136 motor, fms ranger spannweite, fms ranger envergadura

Exact dimensions. True size, with no printing tolerance added.

length
947 mm
width
1220 mm

Notes

  • Retailer copy of FMS spec sheet (secondary). Plan-view envelope only.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

FMS Ranger 1220mm size chart

dimensionvalue
Wingspan1220 mm / 48 in
Length947 mm / 37.3 in
Wing area25.4 dm² (393.7 in²)
Flying weight1200 g (floats included)
Wing loading39.4 g/dm² (0.11 oz/in²)
Motor3136 1200 Kv
ESC20 A
Propeller10 × 5 2-blade
Servos5 × 9 g (floats included)
Battery3S 1300 mAh 25C
CG50–60 mm from leading edge
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

KiwiQuads (retailer)FMS 1.22m Ranger EP PNP with Reflex V3webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

fms-ranger-1220mm-plan-outlinePlan outline 947 × 1220 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=fms-ranger-1220mm

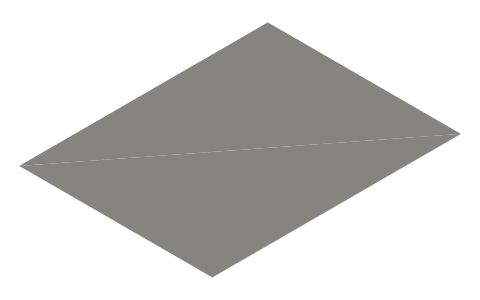

FMS Ranger 1220mm (trainer with floats), isometric render of a generated part
Render of fms-ranger-1220mm-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

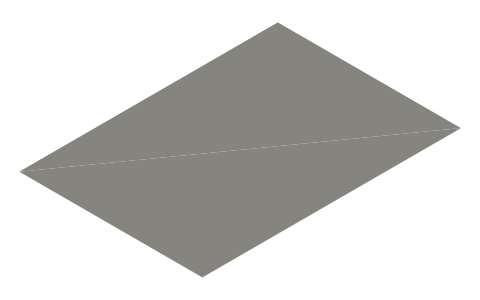

Durafly Tundra V2 1300mm, isometric render of a generated part
Durafly Tundra V2 1300mm920×1300 mm★ 1 file

Questions

What battery does the FMS Ranger 1220 use?

3S 1300 mAh 25C.

Where is the CG?

50–60 mm from the leading edge.
