Food can size 307x409 (commonly called No. 2)

What are the dimensions of a 307x409 can? · Modern device · basis: Canada Processed Products Regulations, Table III (can dimensions)

Also called: 307x409 can, 307x409 can dimensions, no. 2 can size, can sizes chart

Exact dimensions. True size, with no printing tolerance added.

length
87 mm
width
87 mm
height
115 mm

Notes

  • Can 307x409: Ø87 × 115 mm, 540 ml (regulation table).
  • The code reads in inches and sixteenths (first digit inches, next two sixteenths): diameter × height over the double seam.
  • Trade names (No. 300, No. 2 …) are the common US names for these codes; the regulation lists the codes.

Food can size 307x409 size chart

dimensionvalue
diameter87 mm
height115 mm
capacity540 ml
code307x409

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Government of CanadaProcessed Products Regulations, can dimensionswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

food-can-307x409-bodyØ87 × 115 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=food-can-307x409

Food can size 307x409 (commonly called No. 2), isometric render of a generated part
Render of food-can-307x409-body from the free STEP; not to scale.

Fits with

Steel food cans: soup, vegetable, tuna, #2, #2½, #10, coffee, isometric render of a generated part
Steel food cans: soup, vegetable, tuna, #2, #2½, #10, coffee8 sizes★ 8 files

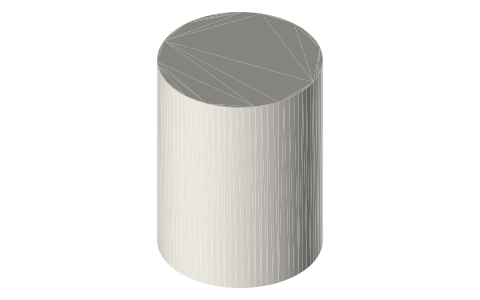

Food can size 202x213.5 (baby / junior food), isometric render of a generated part
Food can size 202x213.5 (baby / junior food)54×54×72 mm★ 1 file
Food can size 211x400 (10 fl oz), isometric render of a generated part
Food can size 211x400 (10 fl oz)68×68×101 mm★ 1 file

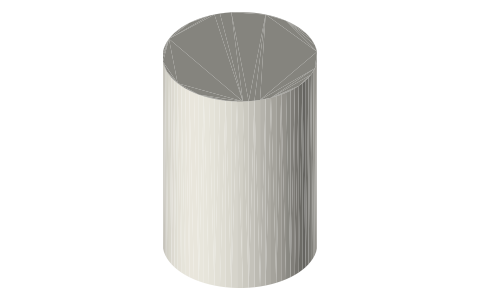

Food can size 300x407 (commonly called No. 300), isometric render of a generated part
Food can size 300x407 (commonly called No. 300)76×76×112 mm★ 1 file

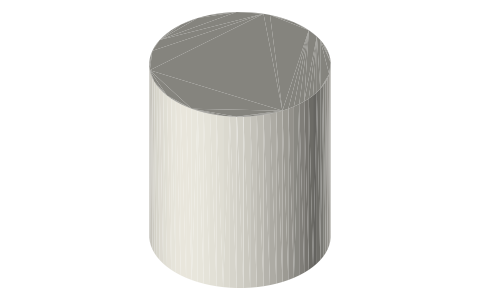

Food can size 401x411 (commonly called No. 2½), isometric render of a generated part
Food can size 401x411 (commonly called No. 2½)103×103×119 mm★ 1 file

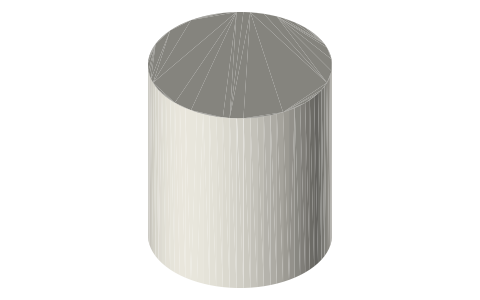

Food can size 603x700 (commonly called No. 10), isometric render of a generated part
Food can size 603x700 (commonly called No. 10)157×157×177 mm★ 1 file

Questions

How big is a 307x409 can?

Ø87 × 115 mm, 540 ml.
