Gemfan D90S 90 mm ducted 3-blade propeller (1.5 mm T-mount)

What are the dimensions of the Gemfan D90S 90 mm ducted 3-blade propeller (1.5 mm T-mount)? · Modern device · basis: Secondary source: GetFPV (copy of the maker's figures; the maker publishes none directly)

Also called: Gemfan D90S dimensions, Gemfan D90S hub thickness, Gemfan D90S bore, Gemfan D90S weight, Gemfan D90S shaft size, Gemfan D90S specs, dimensiones hélice Gemfan D90S, Gemfan D90S Propeller Abmessungen, D90 cinewhoop prop, 3.5 inch ducted prop

Exact dimensions. True size, with no printing tolerance added.

length
90 mm
width
90 mm
height
5.5 mm

Notes

  • Cinewhoop prop for 3.5 in ducts.
  • T-mount hole spacing is not given.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Gemfan D90S 90 mm ducted 3-blade propeller size chart

dimensionvalue
Diameter90 mm (3.5 in)
Pitch3 in
Hub thickness5.5 mm
Bore / mount1.5 mm hub ID, T-mount
Weight2.3 g
Blades3

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GetFPVGemfan D90S 90mm 3.5" Ducted 3-Blade - 1.5mm ShaftwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

gemfan-d90s-3-blade-1-5mm-swept-discSwept disc Ø90 mm × 5.5 mm hub thickness, Ø1.5 mm bore — blades not modelledSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=gemfan-d90s-3-blade-1-5mm

Gemfan D90S 90 mm ducted 3-blade propeller (1.5 mm T-mount), isometric render of a generated part

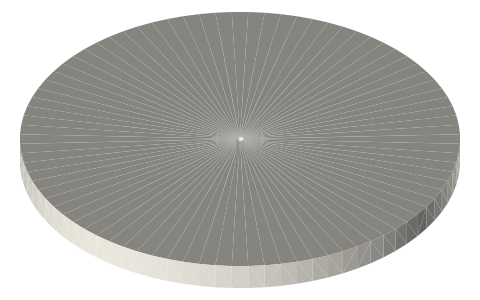

Render of gemfan-d90s-3-blade-1-5mm-swept-disc from the free STEP; not to scale.
