Gemfan Hurricane 51466 propeller

What are the dimensions of the Gemfan Hurricane 51466 propeller? · Modern device · basis: Secondary source: GetFPV (copy of the maker's figures; the maker publishes none directly)

Also called: Gemfan 51466 dimensions, Gemfan 51466 hub thickness, Gemfan 51466 bore, Gemfan 51466 weight, Gemfan 51466 shaft size, Gemfan 51466 specs, dimensiones hélice Gemfan 51466, Gemfan 51466 Propeller Abmessungen, Gemfan Hurricane 51466 V2, 51466 prop hub

Exact dimensions. True size, with no printing tolerance added.

length
129.54 mm
width
129.54 mm
height
7 mm

Notes

  • The popular 51466 freestyle prop (5.1 in × 4.66 pitch × 3 blades).
  • Hub outer diameter not listed.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Gemfan Hurricane 51466 propeller size chart

dimensionvalue
Diameter5.1 in (129.54 mm)
Pitch4.66 in
Hub thickness7 mm
Bore / mount5 mm hub ID
Weight4.13 g
Blades3
Materialpolycarbonate

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GetFPVGemfan Hurricane 51466 PropellerwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

gemfan-hurricane-51466-swept-discSwept disc Ø129.54 mm × 7 mm hub thickness, Ø5 mm bore — blades not modelledSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=gemfan-hurricane-51466

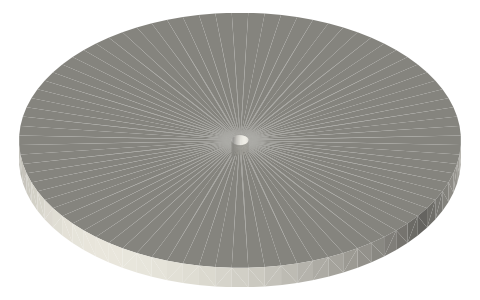

Gemfan Hurricane 51466 propeller, isometric render of a generated part
Render of gemfan-hurricane-51466-swept-disc from the free STEP; not to scale.

Fits with

FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns, isometric render of a generated part
FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns12 sizes★ 10 files
APC 8x4E electric propeller, isometric render of a generated part
APC 8x4E electric propeller203.2×203.2×8.89 mm★ 2 files
APC 8x6E electric propeller, isometric render of a generated part
APC 8x6E electric propeller203.2×203.2×9.91 mm★ 2 files
APC 9x4.5E electric propeller, isometric render of a generated part
APC 9x4.5E electric propeller228.6×228.6×9.65 mm★ 2 files
APC 9x6E electric propeller, isometric render of a generated part
APC 9x6E electric propeller228.6×228.6×9.91 mm★ 2 files

Questions

What shaft does the Gemfan Hurricane 51466 propeller fit?

Bore/mount: 5 mm hub ID; hub thickness 7 mm.
