GEPRC CineLog35 V2 frame

What are the dimensions of the GEPRC CineLog35 V2 frame? · Modern device · basis: Secondary source: GetFPV (copy of the maker's figures; the maker publishes none directly)

Also called: CineLog35 V2 dimensions, Cinelog 35 V2 wheelbase, Cinelog35 FC mounting, Cinelog35 motor mount 12x12, Cinelog35 camera width, GEPRC CL35 V2 frame, dimensiones Cinelog35, Cinelog35 Abmessungen, Cinelog35 V2 weight

Exact dimensions. True size, with no printing tolerance added.

length
25.5 mm
width
25.5 mm

Notes

  • 3.5 in cinewhoop frame with ducts.
  • Only FC pattern and motor pattern spacing are modelled; duct diameter is not published.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

GEPRC CineLog35 V2 frame size chart

dimensionvalue
Wheelbase (motor to motor)142 mm
Arm plate3.5 mm
Top plate2 mm
Bottom plate1.5 mm
Gimbal plate2.0 mm
FC mounting25.5 × 25.5 mm
Motor mounting12 × 12 mm
Camera installation space20 mm
Props3.5 in
Weight133.7 g
Complete BNF (analog) weight263.8 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GetFPVGEPRC CL35 Cinelog 35 V2 Frame KitwebPublisher's page; dimensions are facts
GetFPVGEPRC CineLog 35 V2 Analog w/ Caddx Ratel 2 - 6SwebPublisher's page; dimensions are facts

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

geprc-cinelog35-v2-frame-fc-hole-patternFC holes on a 25.5 × 25.5 mm square (M2) — template discSTEP · STL
geprc-cinelog35-v2-frame-motor-hole-patternsMotor mounts: 12 × 12 mm squares (M2) at the corners of a 142 mm diagonal — template discsSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=geprc-cinelog35-v2-frame

GEPRC CineLog35 V2 frame, isometric render of a generated part

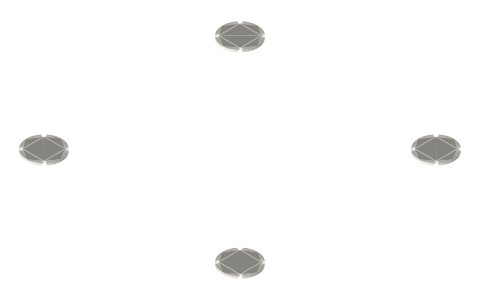

Render of geprc-cinelog35-v2-frame-motor-hole-patterns from the free STEP; not to scale.
