Grooved friction wheel, pitch Ø60, 4 mm V-grooves × 16 wide

What is a grooved friction wheel? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: grooved friction wheel, v groove friction wheel, rueda de fricción ranurada, Keilrillen-Reibrad

Exact dimensions. True size, with no printing tolerance added.

length
63.0 mm
width
63.0 mm
height
16.0 mm

Notes

  • Friction wheel with circumferential V-ridges and grooves (±1.5 mm about a Ø60 pitch line, 4 mm pitch, 67.38° included), 16 mm wide, Ø8 bore (grooves at z = 0, 4, 8, 12, 16): wedged into its mate, the grooves raise the grip of a plain friction wheel about 1/sin(half-angle) times.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Grooved friction wheel, pitch Ø60, 4 mm V-grooves × 16 wide size chart

dimensionvalue
pitch Ø60 mm
groove pitch4 mm
depth±1.5 mm
included angle67.38°
width16 mm
boreØ8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 45: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

grooved-friction-wheel-60wheel, axis Z, z 0..16STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=grooved-friction-wheel-60

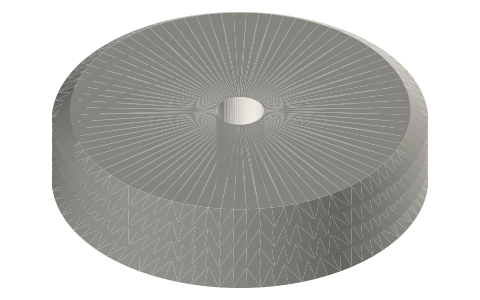

Grooved friction wheel, pitch Ø60, 4 mm V-grooves × 16 wide, isometric render of a generated part
Render of grooved-friction-wheel-60 from the free STEP; not to scale.

Fits with

Grooved (wedge) friction gearing, 30 : 60, isometric render of a generated part
Grooved (wedge) friction gearing, 30 : 604 sizes★ 1 file

Questions

What is a grooved friction wheel?

Friction wheel with circumferential V-ridges and grooves (±1.5 mm about a Ø60 pitch line, 4 mm pitch, 67.38° included), 16 mm wide, Ø8 bore (grooves at z = 0, 4, 8, 12, 16): wedged into its mate, the grooves raise the grip of a plain friction wheel about 1/sin(half-angle) times.
