HobbyZone Carbon Cub S 2 1.3m parts list

What parts does the HobbyZone Carbon Cub S 2 1.3m use, and what sizes are they? · Modern device · basis: Maker's manual / official spare-parts listing: part numbers and sizes as printed

Also called: HobbyZone Carbon Cub S 2 1.3m part numbers, HobbyZone Carbon Cub S 2 1.3m replacement parts, HobbyZone Carbon Cub S 2 1.3m spare parts, HobbyZone Carbon Cub S 2 1.3m parts diagram, HobbyZone Carbon Cub S 2 1.3m exploded view, HobbyZone Carbon Cub S 2 1.3m bearings, HobbyZone Carbon Cub S 2 1.3m screw sizes, repuestos HobbyZone Carbon Cub S 2 1.3m, HobbyZone Carbon Cub S 2 1.3m Ersatzteile

Exact dimensions. True size, with no printing tolerance added.

length
865 mm
width
1300 mm

Notes

  • Every part number the maker publishes for the HobbyZone Carbon Cub S 2 1.3m — 30 parts, 8 with sizes printed in the source (bearings, screws, pins, props, servos, motors, batteries…). Sizes are copied exactly as printed; "not published" means the source gives none.
  • The file is the vehicle's own true-size envelope (the same as its main page). Molded parts' shapes are not published, so they are not modelled; standard hardware links to its own pages.
  • Use it to rebuild or re-print the vehicle: order the numbered parts, print the rest to the published sizes.

HobbyZone Carbon Cub S 2 1.3m parts list size chart

part numberpartgroupsizes (as printed)qtyalso fits
HBZ3220Fuselage: Carbon Cub S+ 1.3mairframenot publishednot published—
HBZ3224Cowl: Carbon Cub S+ 1.3mairframenot publishednot published—
HBZ3228Battery Hatch:Carbon Cub S+ 1.3airframenot publishednot published—
HBZ3229Decal Sheet: Carbon Cub S+ 1.3mairframenot publishednot published—
HBZ3219Wing Tube Carbon Cubwingnot publishednot published—
HBZ3221Main Wing: Carbon Cub S+ 1.3mwingnot publishednot published—
HBZ3226Wing Struts: Carbon Cub S+ 1.3mwingnot publishednot published—
HBZ3230Vrtx Gentrs:CarbonCub S+1.3mwingnot publishednot published—
HBZ3222Tail Set: Carbon Cub S+ 1.3mtailnot publishednot published—
HBZ3223LandingGearSet:CarbonCub S+ 1.3landing gearnot publishednot published—
HBZ3234LG Covers: Carbon Cub S+landing gearnot publishednot published—
HBZ7390Float Set: Super Cub LPlanding gearnot publishednot publishede-flite-valiant-1-3m
EFLA1030FB30-Amp Telemetry Capable ESCpower system30Anot published—
EFLM480BL480 BL Outrunner Motor; 960Kvpower system480-size, 960Kvnot published—
EFLP09060Prop P-51 BL 9 x 6; Sportsman Spower system9 x 6not published—
HBZ3225Spinner 40mm: Carbon Cub S+ 1.3power system40mmnot published—
HBZ3227Mtr Mnt w/Scrws:CarbonCub S+1.3power systemnot publishednot published—
HBZ3233Prop Adapter: Carbon Cub Spower systemnot publishednot published—
SPMX13003S30M1300mAh 3S 11.1V Smart 30C LiPo;IC3power system3S 1300mAh 30C, IC3not publishedrc-lipo-batteries
SPMX22003S302200mAh 3S 11.1V Smart 30C; IC3power system3S 2200mAh 30C, IC3not publishedrc-lipo-batteries
EFL1090DSV130 3-Wire Digital Srvo MT Gservos/linkagesnot publishednot published—
HBZ3218Pushrod Set: Sport Cubservos/linkagesnot publishednot published—
SPMA3052Standard Servo Extension 9"servos/linkages9"not published—
SPMSA3819g Sub-Micro Servo: 400mm Leadservos/linkages9g, 400mm leadnot published—
EFL310017LAS Cover: Apprentice STSelectronicsnot publishednot published—
SPM4650CDSMX SRXL2 RX w/Connectorelectronicsnot publishednot published—
SPM9747DSMX SRXL2 Remote Receiverelectronicsnot publishednot published—
SPMA3173Spektrum GPS Moduleelectronicsnot publishednot published—
SPMA3180Landing Assist Sensor (LAS)electronicsnot publishednot published—
SPMA3230ACarbon Cub S2 FCelectronicsnot publishednot published—

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Horizon Hobby / HobbyZone (manual hosted by Astra)Carbon Cub S 2 1.3m manual (EN), Replacement Parts, p. 33webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

hobbyzone-carbon-cub-s-2-1-3m-plan-outlinePlan outline 865 × 1300 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hobbyzone-carbon-cub-s-2-1-3m-parts-list

HobbyZone Carbon Cub S 2 1.3m parts list, isometric render of a generated part

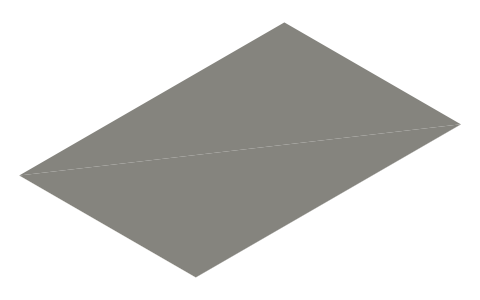

Render of hobbyzone-carbon-cub-s-2-1-3m-plan-outline from the free STEP; not to scale.
