HobbyZone Sport Cub S 2 (615 mm)

What are the dimensions of the HobbyZone Sport Cub S 2? · Modern device · basis: Manufacturer specifications (Horizon Hobby / HobbyZone (manual hosted by Astra))

Also called: sport cub s2 dimensions, hobbyzone sport cub s 2 wingspan, sport cub s2 length, hbz44000 specs, hbz44500 sport cub, sport cub s2 battery, sport cub s2 prop size, sport cub s2 floats weight, sport cub s2 spannweite, sport cub s2 envergadura

Exact dimensions. True size, with no printing tolerance added.

length
414.5 mm
width
617 mm

Notes

  • From the HobbyZone Sport Cub S 2 615mm manual (HBZ444000 / HBZ44500). Retailers list a 368 mm length; the manual's 414.5 mm is used here.
  • Plan-view envelope only; height and CG are not published.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

HobbyZone Sport Cub S 2 size chart

dimensionvalue
Wingspan24.3 in (617 mm)
Length16.3 in (414.5 mm)
Weight without battery2 oz (57 g)
Weight with 1S 150 mAh2.1 oz (61 g)
Weight with floats and battery2.7 oz (77 g)
Propeller130 × 70
ServosSPMSA200 2.3 g linear long-throw offset
Battery1S 3.7 V 150 mAh 25C LiPo (EFLB1501S25)
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Horizon Hobby / HobbyZone (manual hosted by Astra)HBZ444000 manual ENwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

hobbyzone-sport-cub-s-2-plan-outlinePlan outline 414.5 × 617 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hobbyzone-sport-cub-s-2

HobbyZone Sport Cub S 2 (615 mm), isometric render of a generated part
Render of hobbyzone-sport-cub-s-2-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

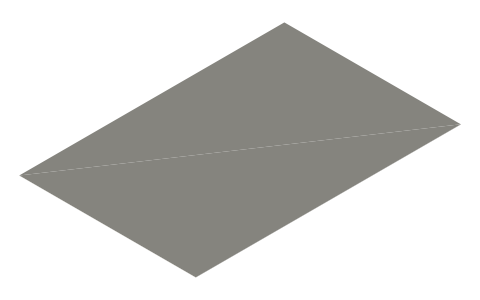

HobbyZone Carbon Cub S 2 1.3m, isometric render of a generated part
HobbyZone Carbon Cub S 2 1.3m865×1300 mm★ 1 file

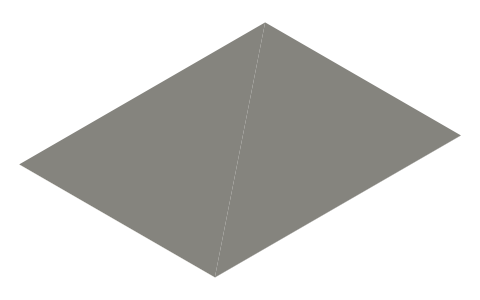

HobbyZone AeroScout S 2 1.1m, isometric render of a generated part
HobbyZone AeroScout S 2 1.1m871×1095 mm★ 1 file

Questions

What battery does the Sport Cub S 2 use?

A 1S 3.7 V 150 mAh LiPo (EFLB1501S25).

How much does it weigh?

61 g with the 1S 150 mAh battery; 77 g with the optional float set.
