HQProp DP 5x4.3x3 V1S propeller

What are the dimensions of the HQProp DP 5x4.3x3 V1S propeller? · Modern device · basis: Secondary source: ReadyMadeRC, GetFPV (copy of the maker's figures; the maker publishes none directly)

Also called: HQProp 5x4.3x3 dimensions, HQProp 5x4.3x3 hub thickness, HQProp 5x4.3x3 bore, HQProp 5x4.3x3 weight, HQProp 5x4.3x3 shaft size, HQProp 5x4.3x3 specs, dimensiones hélice HQProp 5x4.3x3, HQProp 5x4.3x3 Propeller Abmessungen, HQ 5043 V1S, HQProp 5043 tri blade

Exact dimensions. True size, with no printing tolerance added.

length
127 mm
width
127 mm
height
7 mm

Notes

  • The 5-inch tri-blade freestyle prop.
  • GetFPV's listing gives 4 in pitch in one field and 4.3 in another; the model name and ReadyMadeRC give 4.3 in.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

HQProp DP 5x4.3x3 V1S propeller size chart

dimensionvalue
Diameter5 in (127 mm)
Pitch4.3 in
Hub thickness7 mm
Bore / mount5 mm hole (M5 shaft)
Weightapprox. 3.7 g (ReadyMadeRC) / 3.87 g (GetFPV)
Blades3
Materialpolycarbonate

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ReadyMadeRCHQProp 5x4.3x3V1S PCwebPublisher's page; dimensions are facts
GetFPVHQProp DP 5x4.3x3V1SwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

hqprop-dp-5x4-3x3-v1s-swept-discSwept disc Ø127 mm × 7 mm hub thickness, Ø5 mm bore — blades not modelledSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hqprop-dp-5x4-3x3-v1s

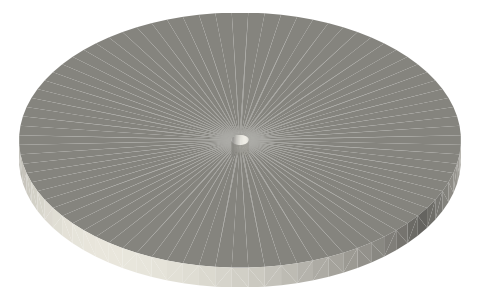

HQProp DP 5x4.3x3 V1S propeller, isometric render of a generated part
Render of hqprop-dp-5x4-3x3-v1s-swept-disc from the free STEP; not to scale.

Fits with

FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns, isometric render of a generated part
FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns12 sizes★ 10 files
APC 8x4E electric propeller, isometric render of a generated part
APC 8x4E electric propeller203.2×203.2×8.89 mm★ 2 files
APC 8x6E electric propeller, isometric render of a generated part
APC 8x6E electric propeller203.2×203.2×9.91 mm★ 2 files
APC 9x4.5E electric propeller, isometric render of a generated part
APC 9x4.5E electric propeller228.6×228.6×9.65 mm★ 2 files
APC 9x6E electric propeller, isometric render of a generated part
APC 9x6E electric propeller228.6×228.6×9.91 mm★ 2 files

Questions

What shaft does the HQProp DP 5x4.3x3 V1S propeller fit?

Bore/mount: 5 mm hole (M5 shaft); hub thickness 7 mm.
