HQProp MacroQuad 7x4.5x3 propeller

What are the dimensions of the HQProp MacroQuad 7x4.5x3 propeller? · Modern device · basis: Secondary source: Rotor Village (copy of the maker's figures; the maker publishes none directly)

Also called: HQ MacroQuad 7x4.5x3 dimensions, HQ MacroQuad 7x4.5x3 hub thickness, HQ MacroQuad 7x4.5x3 bore, HQ MacroQuad 7x4.5x3 weight, HQ MacroQuad 7x4.5x3 shaft size, HQ MacroQuad 7x4.5x3 specs, dimensiones hélice HQ MacroQuad 7x4.5x3, HQ MacroQuad 7x4.5x3 Propeller Abmessungen, HQ 7045 macroquad, MacroQuad prop hub

Exact dimensions. True size, with no printing tolerance added.

length
177.8 mm
width
177.8 mm
height
8 mm

Notes

  • Larger-hub 7 in prop; Rotor Village lists the bore as '8/5mm' without further detail.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

HQProp MacroQuad 7x4.5x3 propeller size chart

dimensionvalue
Diameter7 in (177.8 mm)
Pitch4.5 in
Hub thickness8 mm
Bore / mount8/5 mm (as listed)
Weight9 g
Hub diameter14 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Rotor VillageHQ MacroQuad 7x4.5x3 PropellerwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

hqprop-macroquad-7x4-5x3-swept-discSwept disc Ø177.8 mm × 8 mm hub thickness (bore listed as '8/5 mm (as listed)', not drawn) — blades not modelledSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hqprop-macroquad-7x4-5x3

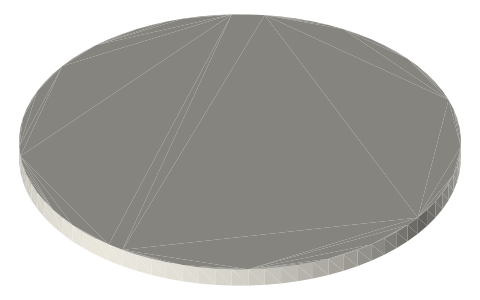

HQProp MacroQuad 7x4.5x3 propeller, isometric render of a generated part
Render of hqprop-macroquad-7x4-5x3-swept-disc from the free STEP; not to scale.

Fits with

FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns, isometric render of a generated part
FPV drone motor sizes: 1104 to 3115, shaft, prop thread and mount patterns12 sizes★ 10 files
APC 8x4E electric propeller, isometric render of a generated part
APC 8x4E electric propeller203.2×203.2×8.89 mm★ 2 files
APC 8x6E electric propeller, isometric render of a generated part
APC 8x6E electric propeller203.2×203.2×9.91 mm★ 2 files
APC 9x4.5E electric propeller, isometric render of a generated part
APC 9x4.5E electric propeller228.6×228.6×9.65 mm★ 2 files
APC 9x6E electric propeller, isometric render of a generated part
APC 9x6E electric propeller228.6×228.6×9.91 mm★ 2 files

Questions

What shaft does the HQProp MacroQuad 7x4.5x3 propeller fit?

Bore/mount: 8/5 mm (as listed); hub thickness 8 mm.
