Hydro Flask 32 oz Wide Mouth with Flex Straw Cap

What are the dimensions of the Hydro Flask 32 oz Wide Mouth with Flex Straw Cap? · Modern device · basis: evo (retailer spec)

Also called: hydro flask 32 oz wide mouth with flex straw cap dimensions, hydro flask 32 oz wide mouth with flex straw cap size, hydro flask 32 oz dimensions, Hydro Flask 32 oz Wide Mouth with Flex Straw Cap medidas, Hydro Flask 32 oz Wide Mouth with Flex Straw Cap dimensões, Hydro Flask 32 oz Wide Mouth with Flex Straw Cap Maße, Hydro Flask 32 oz Wide Mouth with Flex Straw Cap dimensions

Exact dimensions. True size, with no printing tolerance added.

length
90.42 mm
width
90.42 mm
height
231.14 mm

Notes

  • Hydro Flask 32 oz Wide Mouth with Flex Straw Cap: 231.14 mm tall, 90.42 mm across.
  • 9.1 in H, 3.56 in diameter, mouth 2.28 in.
  • Base diameter decides cup-holder fit; where the maker does not publish it, it is marked for a measured Xem scan.

Hydro Flask 32 oz Wide Mouth with Flex Straw Cap size chart

dimensionvalue
capacity32 oz (940 ml)
height231.14 mm (9.10 in)
max diameter90.42 mm (3.56 in)
base diameternot published (scan planned)
mouth diameter57.91 mm
handleno

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

evoHydro Flask 32 oz Wide Mouth with Flex Straw Cap specificationswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

hydro-flask-32-oz-wide-mouth-with-flex-straw-cap-envelopeCylinder envelope Ø90.42 × 231.14 mm from the published size (taper and cap not modelled)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hydro-flask-32-oz-wide-mouth-with-flex-straw-cap

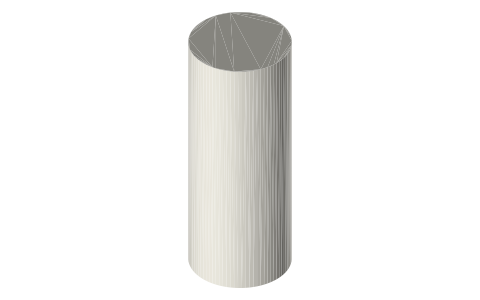

Hydro Flask 32 oz Wide Mouth with Flex Straw Cap, isometric render of a generated part
Render of hydro-flask-32-oz-wide-mouth-with-flex-straw-cap-envelope from the free STEP; not to scale.

Fits with

length
Stanley Quencher H2.0 FlowState 20 oz227.58 mm★ sheet
length
Stanley Quencher H2.0 FlowState 30 oz279.91 mm★ sheet
length
Stanley Quencher H2.0 FlowState 64 oz122.94×122.94×315.98 mm★ sheet
length
Stanley IceFlow Flip Straw 30 oz248 mm★ sheet
YETI Rambler 20 oz Tumbler, isometric render of a generated part
YETI Rambler 20 oz Tumbler88.9×88.9×167.64 mm★ 1 file
YETI Rambler 30 oz Tumbler, isometric render of a generated part
YETI Rambler 30 oz Tumbler101.6×101.6×198.12 mm★ 1 file

Questions

How tall is the Hydro Flask 32 oz Wide Mouth with Flex Straw Cap?

231.14 mm (9.10 in).
