Hydro Flask 32 oz Wide Mouth

Name: Hydro Flask 32 oz Wide Mouth dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Hydro Flask 32 oz Wide Mouth? · Modern device · basis: evo (retailer spec)

Also called: hydro flask 32 oz wide mouth dimensions, hydro flask 32 oz wide mouth size, hydro flask 32 oz dimensions, Hydro Flask 32 oz Wide Mouth medidas, Hydro Flask 32 oz Wide Mouth dimensões, Hydro Flask 32 oz Wide Mouth Maße, Hydro Flask 32 oz Wide Mouth dimensions

Exact dimensions. True size, with no printing tolerance added.

length: 90.93 mm
width: 90.93 mm
height: 238.76 mm

Notes

Hydro Flask 32 oz Wide Mouth: 238.76 mm tall, 90.93 mm across.
9.4 in H, 3.58 in diameter, mouth 2.26 in.
Base diameter decides cup-holder fit; where the maker does not publish it, it is marked for a measured Xem scan.

Hydro Flask 32 oz Wide Mouth size chart

dimension	value
capacity	32 oz (946 ml)
height	238.76 mm (9.40 in)
max diameter	90.93 mm (3.58 in)
base diameter	not published (scan planned)
mouth diameter	57.4 mm
handle	no

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

evo

Hydro Flask 32 oz Wide Mouth specifications

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

hydro-flask-32-oz-wide-mouth-envelope

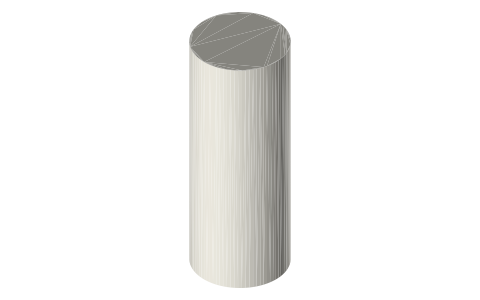

Cylinder envelope Ø90.93 × 238.76 mm from the published size (taper and cap not modelled)

STEP · STL
