IKEA IVAR shelving dimensions (side units and shelves)
What are the IKEA IVAR dimensions? · Modern device · basis: IKEA product pages; hole pitch measured by an owner
Also called: ivar dimensions, ivar shelf size, ivar hole spacing
Exact dimensions. True size, with no printing tolerance added.
- sizes
- 2 in table
Notes
- Side unit 300 deep × 1785 tall; shelves 830 × 300 × 18 mm (pine).

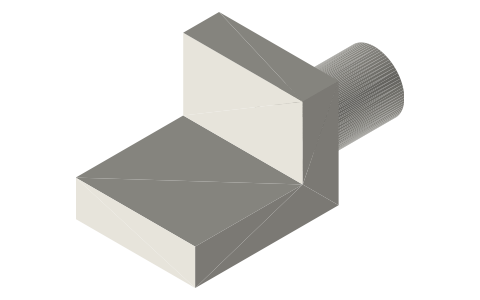

- Side-unit hole pitch about 32 mm (measured by an owner, method not stated).
- US side units are listed in inches only (11¾ × 48⅞ in for the short one).
IKEA IVAR shelving dimensions size chart
| part | width (mm) | depth (mm) | height (mm) |
|---|---|---|---|
| IVAR side unit 30 × 179 | 30 | 300 | 1785 |
| IVAR shelf 83 × 30 | 830 | 300 | 18 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| IKEA (official product page) | IVAR side unit | web | Manufacturer product page; dimensions are facts |
| IKEA (official product page) | IVAR shelf | web | Manufacturer product page; dimensions are facts |
| Hackaday.io (owner measurement) | IVAR hole pitch | web | Publisher's page; dimensions are facts |
Xem scan
Not planned The manufacturer publishes CAD; the sheet is here so an assistant can answer without opening a PDF.
Let your AI pull this. Add
Set it up →https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=ikea-ivar
Questions
How thick are IVAR shelves?
18 mm (830 × 300 shelf).
