Shaft Ø8 × 100 with a 2 × 1 keyway (60 mm)

Name: Shaft Ø8 × 100 with a 2 × 1 keyway (60 mm) dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What is a keyed shaft? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: keyed shaft, keyway shaft, eje chavetero, Welle mit Nut

Exact dimensions. True size, with no printing tolerance added.

length: 8.0 mm
width: 8.0 mm
height: 100.0 mm

Notes

Ø8 × 100 shaft with a 2 mm wide, 1 mm deep keyway over its last 60 mm for a 2 × 2 feather key, on which a clutch half can slide but not turn.
Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Shaft Ø8 × 100 with a 2 × 1 keyway size chart

dimension	value
shaft	Ø8 × 100
keyway	2 × 1 × 60

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)	Five Hundred and Seven Mechanical Movements — scan on archive.org	web	Publisher's page; dimensions are facts
507movements.com	Brown's movement No. 47: figure, his text and an animation	web	Publisher's page; dimensions are facts
Xem Studio	drawing	web	Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

keyed-shaft-8x100-key2

shaft, axis Z, z 0..100, keyway on +Y

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=keyed-shaft-8x100-key2

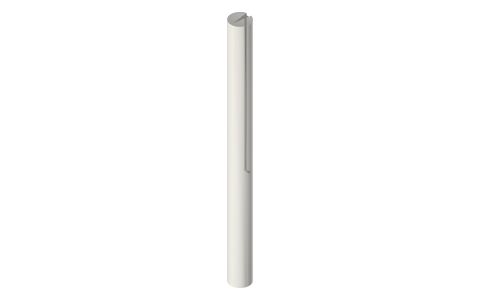

Shaft Ø8 × 100 with a 2 × 1 keyway (60 mm), isometric render of a generated part — Render of keyed-shaft-8x100-key2 from the free STEP; not to scale.

Fits with

Free

Pin (stud) clutch: studs on a sliding disc enter holes in a fixed disc, isometric render of a generated part

Pin (stud) clutch: studs on a sliding disc enter holes in a fixed disc3 sizes★ 1 file Free

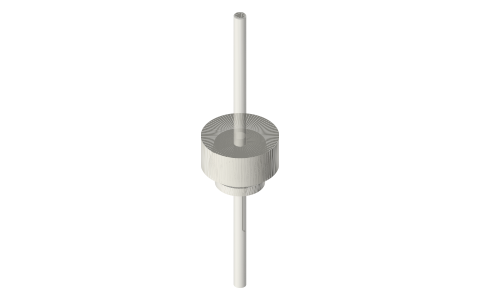

Cone friction clutch on a feathered shaft, isometric render of a generated part

Cone friction clutch on a feathered shaft4 sizes★ 1 file

Questions

What is a keyed shaft?

Ø8 × 100 shaft with a 2 mm wide, 1 mm deep keyway over its last 60 mm for a 2 × 2 feather key, on which a clutch half can slide but not turn.
